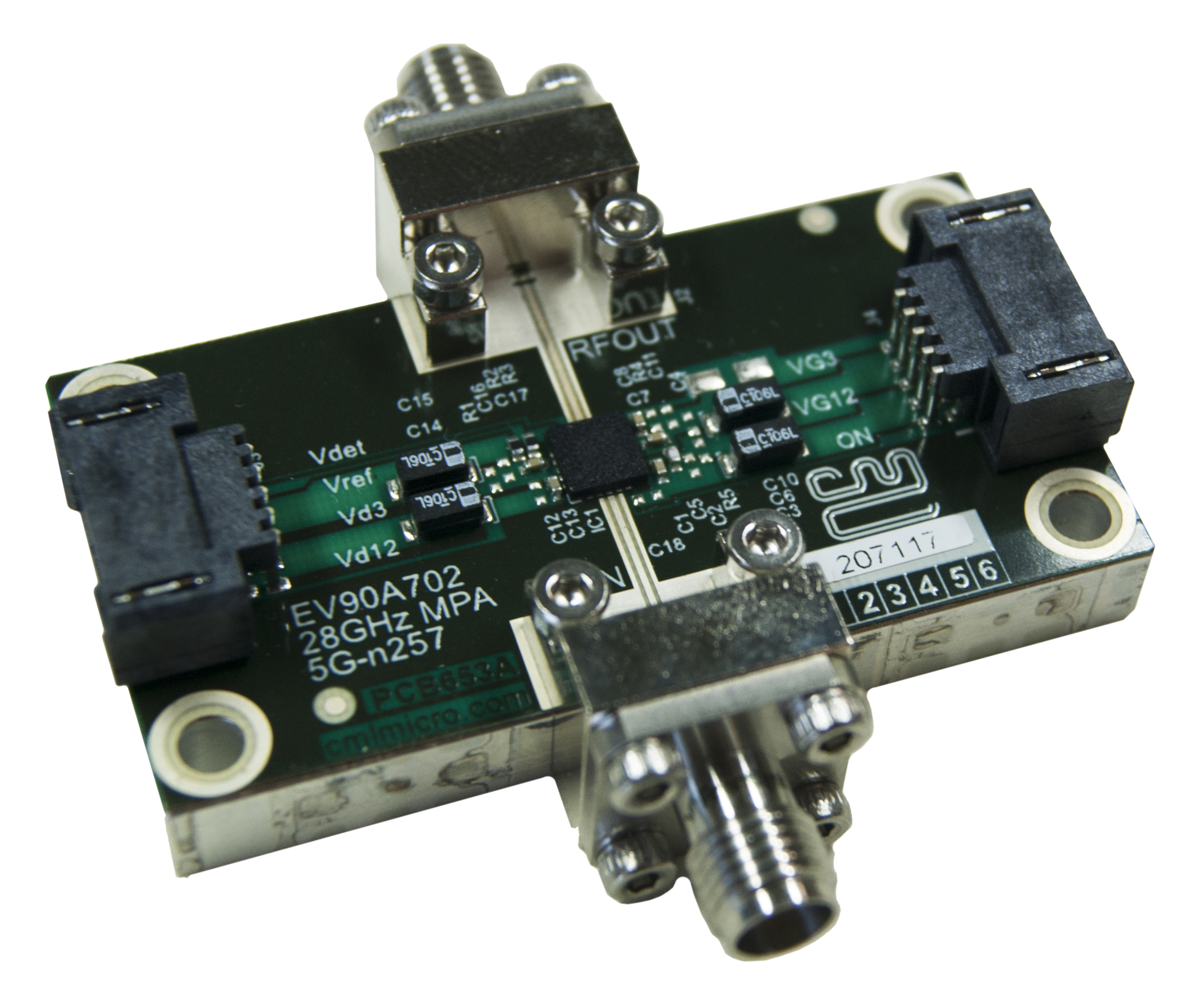

The CMX90A702 is a highly linear medium power amplifier operating in Frequency Range 2 (FR2) from 26.5 to 29.5 GHz, addressing the needs of 5G New Radio (NR) band n257 and n261.

CMX90A702 is a three-stage GaAs MMIC amplifier delivering +25 dBm (0.3 W) of output power at 1 dB gain compression, 21 dB of small signal gain and +32.5 dBm output third order intercept (OIP3). RF ports are matched to 50 Ω with an integrated DC blocking capacitor at the output.

The MPA is easy to monitor and control with an on-chip temperature-compensated RF power detector and fast-switching enable circuit.

Using an enhancement mode (E-mode) pHEMT process ensures only positive supply voltages are required, thus making single DC supply operation possible.

Features

• Frequency range 26.5 – 29.5 GHz
• Small signal gain 21 dB
• Output P1dB +25 dBm (0.3 W)
• Power added efficiency 26 %
• EVM 4 % @ 18 dBm mean power
• Supply +4 V @ 182 mA
• Vd applied either side of package
