F0424

RF from Renesas

Amplifier, High Gain, 600 to 4200 MHz, 21 dBm, 18 dB, 2x2, 8pin, SiGe

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

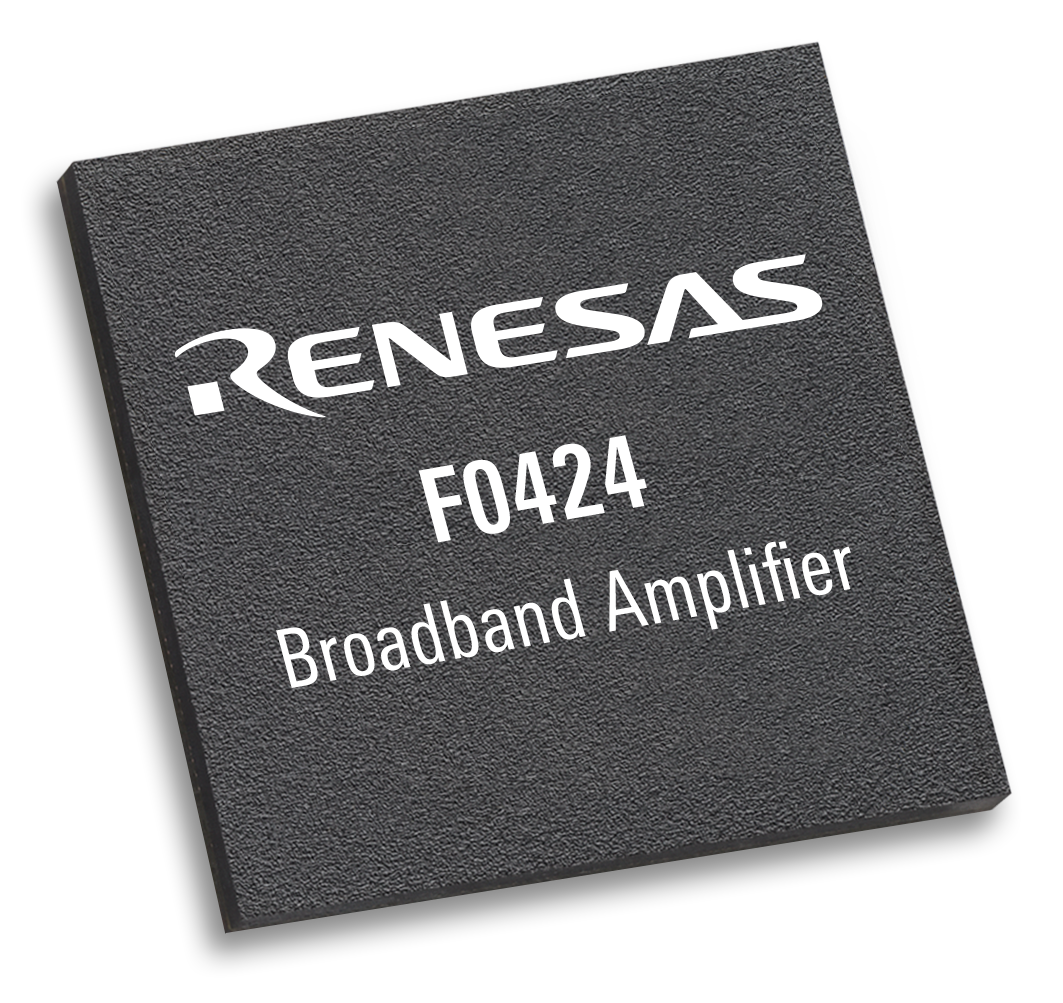

The F0424 is a 600MHz to 4200MHz SiGe High-Gain Broadband RF Amplifier. The combination of low noise figure (NF) and high linearity performance allows the device to be used in both receiver and transmitter applications.
The F0424 is designed to operate with a single 5V or 3.3V power supply using a nominal 70mA of ICC. With a supply voltage of 5V, the F0424 provides 17.3dB gain with +40dBm OIP3 and 2.3dB noise figure at 2600MHz.
This device is packaged in a 2mm x 2mm, 8-pin Thin DFN with 50Ω single-ended RF input and output impedances for ease of integration into the signal-path.

Features:

RF Range: 600MHz to4200MHz
Noise Figure = 2.3dB @ 2600MHz
Gain = 17.3dB @ 2600MHz
OIP3 = +40dBm @ 2600MHz
Output P1dB = +21dBm @ 2600MHz
Near-Constant Gain versus Temperature
3.3V or 5V Power Supply
ICC= 70mA
2mA Standby Current
350mW Typical DC Power @ 5V Supply
50Ω Input and Output Impedances
Operating Temperature (TEP) Range: -40°C to +105°C
2mm x 2mm, 8-DFN Package

Part Number: F0424
Manufacturer: Renesas
Type: Amplifiers
Frequency Min: 0.6 GHz
Frequency Max: 4.2 GHz
P1dB: 21 dBm
Gain: 18 dB
IP3: 40 dBm
Supply Voltage \ Vd Min: 3.15 V
Supply Voltage \ Vd Max: 5.25 V
Quiescent Current \ Id: 70 mA
Noise Figure: 2.2 dB
Package: DFN 2x2mm
Gain Flatness: -0.1 ±dB
Return Loss Input: 12 dB
Return Loss Output: 12 dB
Process: SiGe
