F1420

RF from Renesas

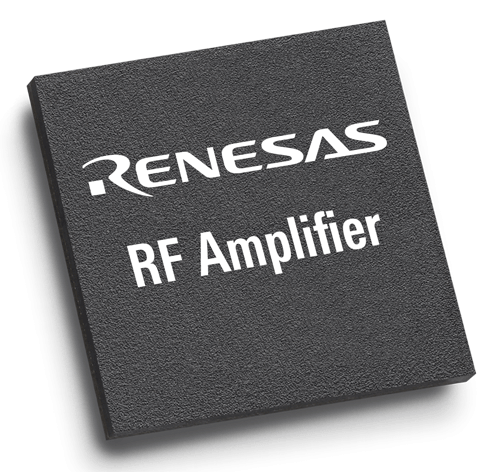

Amplifier, Linear Driver, 0.7 to 1.1 GHz, 23.2 dBm, 17.5 dB, 4.5 dB NF, QFN 4x4, 24 pin

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

The IDT F1420 is a high gain / high linearity RF amplifier used in high-performance RF applications. The F1420 provides 17.4dB gain with +42dBm OIP3 and 4.5dB noise figure at 960MHz. This device uses a single 5V supply and 105mA of ICC. In typical base stations, RF amplifiers are used in the RX and TX traffic paths to boost signal levels. The F1420 amplifier offers very high reliability due to its onstruction using silicon die in a QFN package.

Part Number: F1420
Manufacturer: Renesas
Type: Amplifiers
Frequency Min: 0.7 GHz
Frequency Max: 1.1 GHz
P1dB: 23.2 dBm
Gain: 17.5 dB
IP3: 42 dBm
Supply Voltage \ Vd Max: 5 V
Quiescent Current \ Id: 105 mA
Noise Figure: 4.5 dB
Package: QFN 4x4mm
Gain Flatness: 0.4 ±dB
Return Loss Input: 17 dB
Return Loss Output: 14 dB
Process: Si
