Home>> Amplifier>> F1421

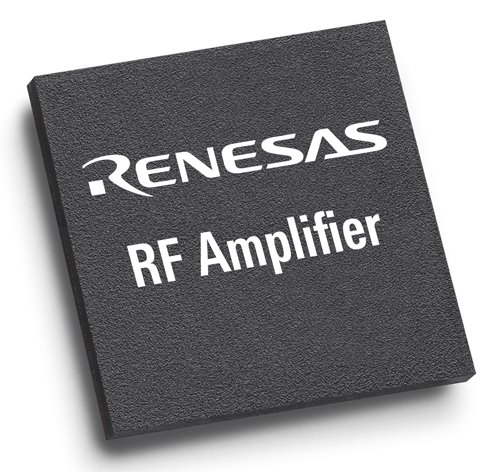

F1421

Amplifier from Axiro Semiconductor Inc.

Amplifier, Linear Driver, 1.7 to 2.2 GHz, 23 dBm, 20.3 dB, 4x4, 24-Pin

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

The IDT F1421 is a high gain/high linearity RF amplifier used in high-performance RF applications. The F1421 provides 20.3dB gain with a +40dBm OIP3 and 5.5dB noise figure at 1.9GHz. This device uses a single 5V supply and 138mA of ICC. In typical base stations, RF amplifiers are used in the RX and TX traffic paths to boost signal levels. The F1421amplifier offers very high reliability due to its construction using silicon die in a QFN package.

Part Number: F1421
Manufacturer: Axiro Semiconductor Inc.
Type: Amplifiers
Frequency Min: 1.7 GHz
Frequency Max: 2.2 GHz
P1dB: 23 dBm
Gain: 20.3 dB
IP3: 40 dBm
Supply Voltage \ Vd Max: 5 V
Quiescent Current \ Id: 138 mA
Noise Figure: 5.5 dB
Package: QFN 4x4mm
Gain Flatness: 1.3 ±dB
Process: Si

Tariff Notice

Product may be included on Section 301 Tariff List and subject to applicable tariff charges.

Technical Inquiry Request for F1421 Amplifier

Fields marked with * are required.

Product Specifications For F1421 Amplifier

Part Number: F1421 Manufacturer: Axiro Semiconductor Inc. Product Description: Amplifier, Linear Driver, 1.7 to 2.2 GHz, 23 dBm, 20.3 dB, 4x4, 24-Pin

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1 - 9

$4.80

Request a Pricing Quote for greater quantities

Product Notices

Tariff Notice

Product may be included on Section 301 Tariff List and subject to applicable tariff charges.
