Home>> Amplifier>> F1475

F1475

Amplifier from Axiro Semiconductor Inc.

Amplifier, Linear Driver 0.7 - 2.8 GHz, 30 dBm, 18.5 dB, QFN 4 x 4mm

Status: Standard | Datasheet: Request Data Sheet | RoHS Compliance: Rohs Compliant

The F1475 is a high linearity RF Driver Amplifier designed to operate within the 1350MHz to 2800MHz frequency range. Using a single 5V power supply, the F1475 provides TBD typical gain and 30dBm typical OP1dB with a low quiescent current consumption of 180mA.

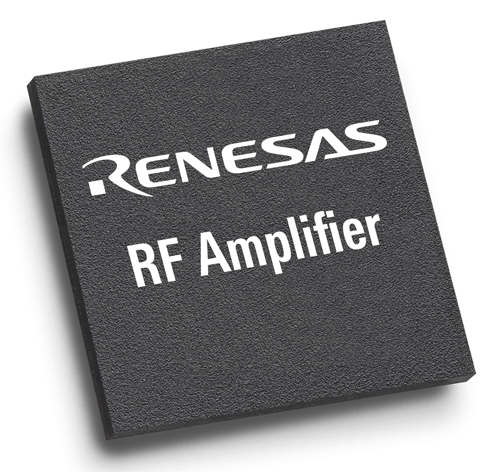

The F1475 is packaged in a 4 × 4 mm, 20-VFQFPN package, with matched 50Ω input and output impedances for ease of integration into the signal path.

Frequency range: 1350MHz to 2800MHz
TBD typical gain at 2100MHz
+30dBm typical OP1dB at 2100MHz
50Ω Single-ended input and output impedances
5V power supply
180mA typical quiescent supply current
1.8V logic compatible standby mode for power savings
Operating temperature (TEPAD) range: -40°C to +115°C
4 × 4 mm 20-VFQFPN package

Part Number: F1475
Manufacturer: Axiro Semiconductor Inc.
Type: Amplifiers
Frequency Min: 1.35 GHz
Frequency Max: 2.8 GHz
P1dB: 30 dBm
Gain: 18 dB
IP3: 43 dBm
Supply Voltage \ Vd Min: 5 V
Quiescent Current \ Id: 120 mA
Package: QFN 4x4mm

No Content Available

Technical Inquiry Request for F1475 Amplifier

Fields marked with * are required.

Product Specifications For F1475 Amplifier

Part Number: F1475 Manufacturer: Axiro Semiconductor Inc. Product Description: Amplifier, Linear Driver 0.7 - 2.8 GHz, 30 dBm, 18.5 dB, QFN 4 x 4mm

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

$5.28

Request a Pricing Quote for greater quantities

Product Notices

No Current Notices
