Home>> RF Switch>> F2976

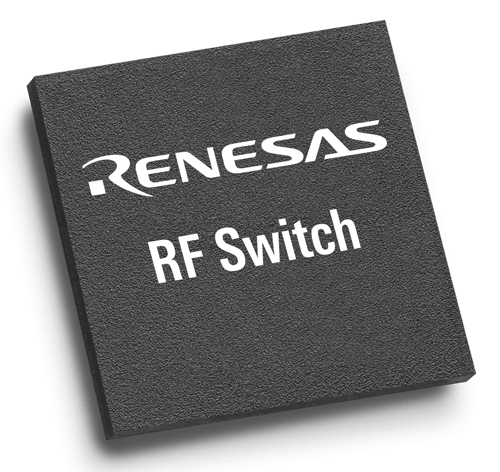

F2976

RF Switch from Axiro Semiconductor Inc.

RF Switch, 50 or 75 ohm SPDT, 5 to 10000 MHz with minimum insertion loss of 0.2 dB. Offered in a QFN 2x2mm package.

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

F2976 is a single-pole double-throw (SP2T) reflective RF switch featuring high linearity and wide bandwidth. This device is optimized from 5MHz to 1.8GHz to support downstream cablemodem future migration for DOCSIS 3.1 applications, and operates at up to 10GHz to support a multitude of wireless RF applications. Superb performance is achieved when used in either 50Ω or 75Ω terminating impedance applications. The F2976 uses a single positive supply voltage of either +3.3V or +5.0V and is compatible with either 1.8V or 3.3V control logic.

Competitive Advantage:
The F2976 provides extremely low insertion loss across the entire bandwidth while providing superb distortion performance.

Optimized for DOCSIS 3.1 applications up to 1.8GHz
Optimized for Wi-Fi applications up to 5.9GHz
Low insertion loss
High isolation
Fast switching
No external matching required

Part Number: F2976
Manufacturer: Axiro Semiconductor Inc.
Type >>RF Switch: Single Pole
Function: SPDT
Impedance: 50 or 75 Ohms
Frequency Range Min: 5 MHz
Frequency Range Max: 10000 MHz
Insertion Loss Min: 0.2 dB
Insertion Loss Max: 0.54 dB
Isolation Min: 40 dB
Isolation Max: 77 dB
Power Rating: 34 dBm
IIP3: 77 dBm
Package: QFN 2x2mm

No Content Available

Part Function	Part Number	Description
Evaluation Board	F2976EVBI-50OHM Axiro Semiconductor Inc.	Evaluation Board for F2976 - 50 OHM
Evaluation Board	F2976EVBI-75OHM Axiro Semiconductor Inc.	Evaluation Board for F2976 - 75 OHM

Technical Inquiry Request for F2976 RF Switch

Fields marked with * are required.

Product Specifications For F2976 RF Switch

Part Number: F2976 Manufacturer: Axiro Semiconductor Inc. Product Description: RF Switch, 50 or 75 ohm SPDT, 5 to 10000 MHz with minimum insertion loss of 0.2 dB. Offered in a QFN 2x2mm package.

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1 - 9

$2.02

Request a Pricing Quote for greater quantities

Product Notices

No Current Notices
