F4482

DIFF-In / SE-Out Quad Path TX DVGA - 1300MHz to 2800MHz

The F4482 is a 1300MHz to 2800MHz Quad Path TX DVGA outfitted with 100Ω differential inputs and 50Ω single-ended outputs. The device is part of a complete family of VGAs targeting FDD and TDD applications within the 400MHz to 4200MHz frequency range.
Using a single 3.3V power supply and only 485mA of ICC, the F4482 provides four independent transmit paths, each with 27.5dB typical maximum gain, +36.8dBm OIP3, +16.5dBm output P1dB, and 5.7dB NF. Each channel includes a glitch-free digital step attenuator that reduces gain by up to 31.5dB in precise 0.5dB steps.

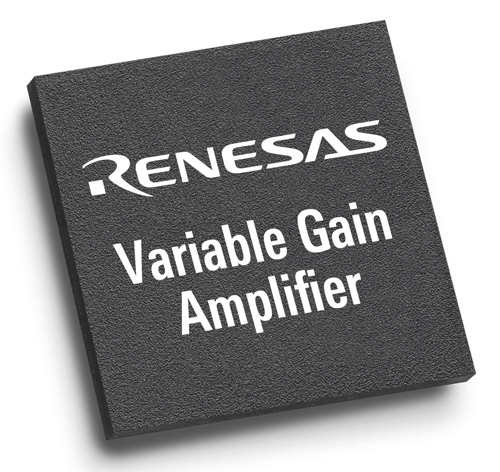

The F4482 is packaged in an 8 × 8 mm 56-LGA, with matched 100Ω differential input and 50Ω single-ended output impedances for ease of integration into the signal path.

Features

- Independent quad channels for FDD TX applications
- 1300MHz to 2800MHz
- 27.5dB typical maximum gain at 2100MHz
- Precise SPI-controlled Glitch-Free™ gain adjustment
- 31.5dB gain range with 0.5dB step size
- 5.7dB NF at 2100MHz
- +36.8dBm OIP3 at 2100MHz
- +16.5dBm output P1dB at 2100MHz
- 3.3V supply voltage
- ICC = 485mA
- 100Ω differential input impedances
- 50Ω single-ended output impedances
- 1.8V and 3.3V logic support
- Independent channel standby modes for power savings
- Operating temperature (TEP) range: -40°C to +115°C
- 8 × 8 mm, 56-LGA package
