F5268

RF from Renesas

Beamformer, Tx, 24.25GHz to 27.5GHz, 8 Channel

Status: Standard | Datasheet: Request Data Sheet | RoHS Compliance: Rohs Compliant

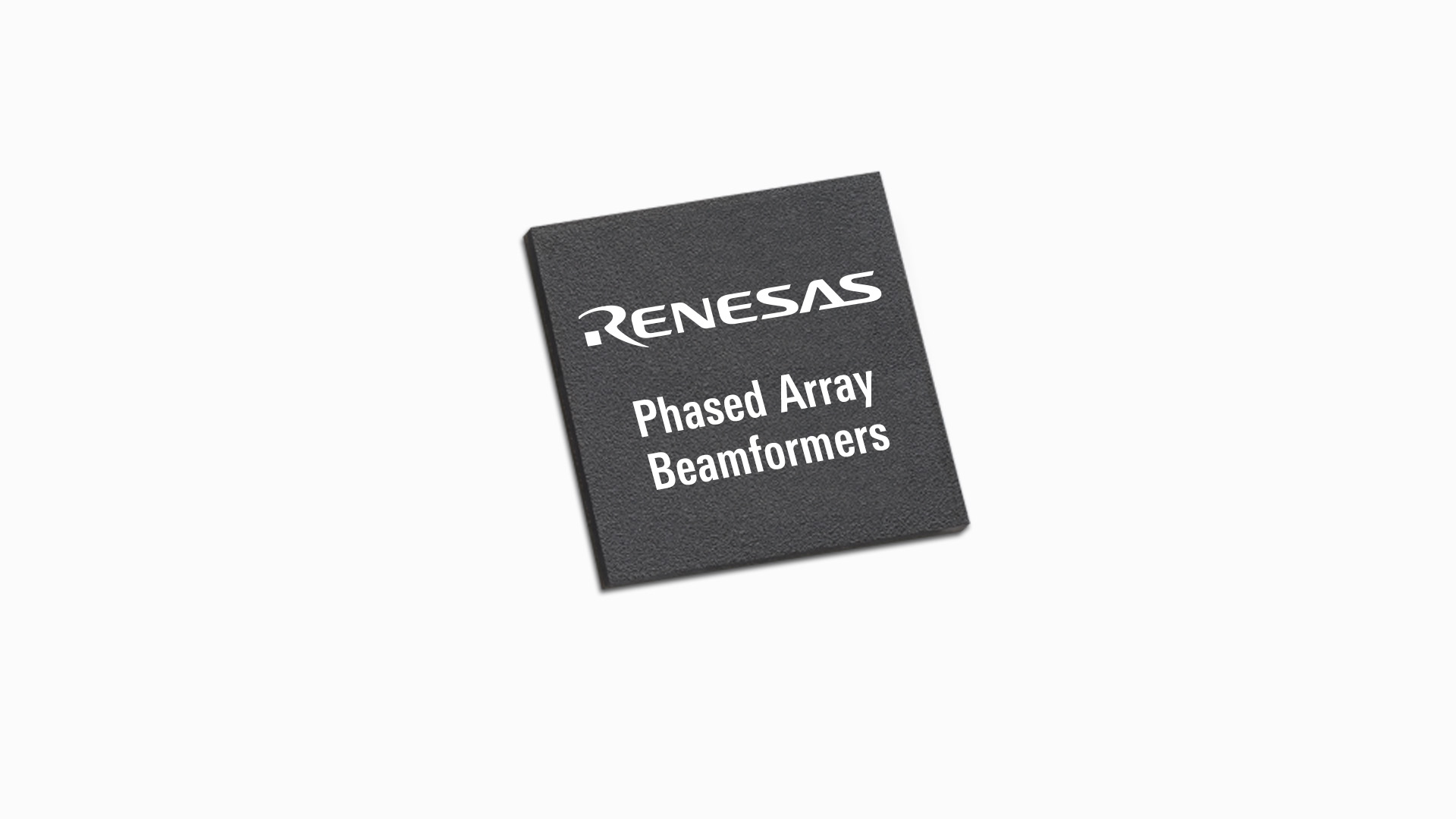

8-Channel Dual-Polarization TRX Beamformer IC at 24.25GHz - 27.5GHz

The F5268 is an eight-channel TRX silicon IC designed for dual polarization 5G phased-array applications at n258/n261 bands. This device provides more than 15.5dBm linear output power* in silicon for wide-band 5G-NR waveforms.
*Power level with <3% EVM using 400MHz 5G-NR CP-OFDM waveform

Features

24.25GHz to 27.5GHz operation
8 radiation channels, beam-per-polarization
Flexible output power and high efficiency with Dynamic Array Power (DAP™)
ArraySense™ technology for real-time monitoring
High-speed SPI control with RapidBeam™ technology
5.1mm × 5.1mm, 118-BGA package with exposed-die
-40°C to +95°C ambient operating temperature range

Part Number: F5268
Manufacturer: Renesas
Frequency Min: 24.25 GHz
Frequency Max: 27.5 GHz

Tariff Notice

Product may be included on Section 301 Tariff List and subject to applicable tariff charges.

Part Function	Part Number	Description
Evaluation Board	F5268EVS Renesas	Evaluation System for F5268
