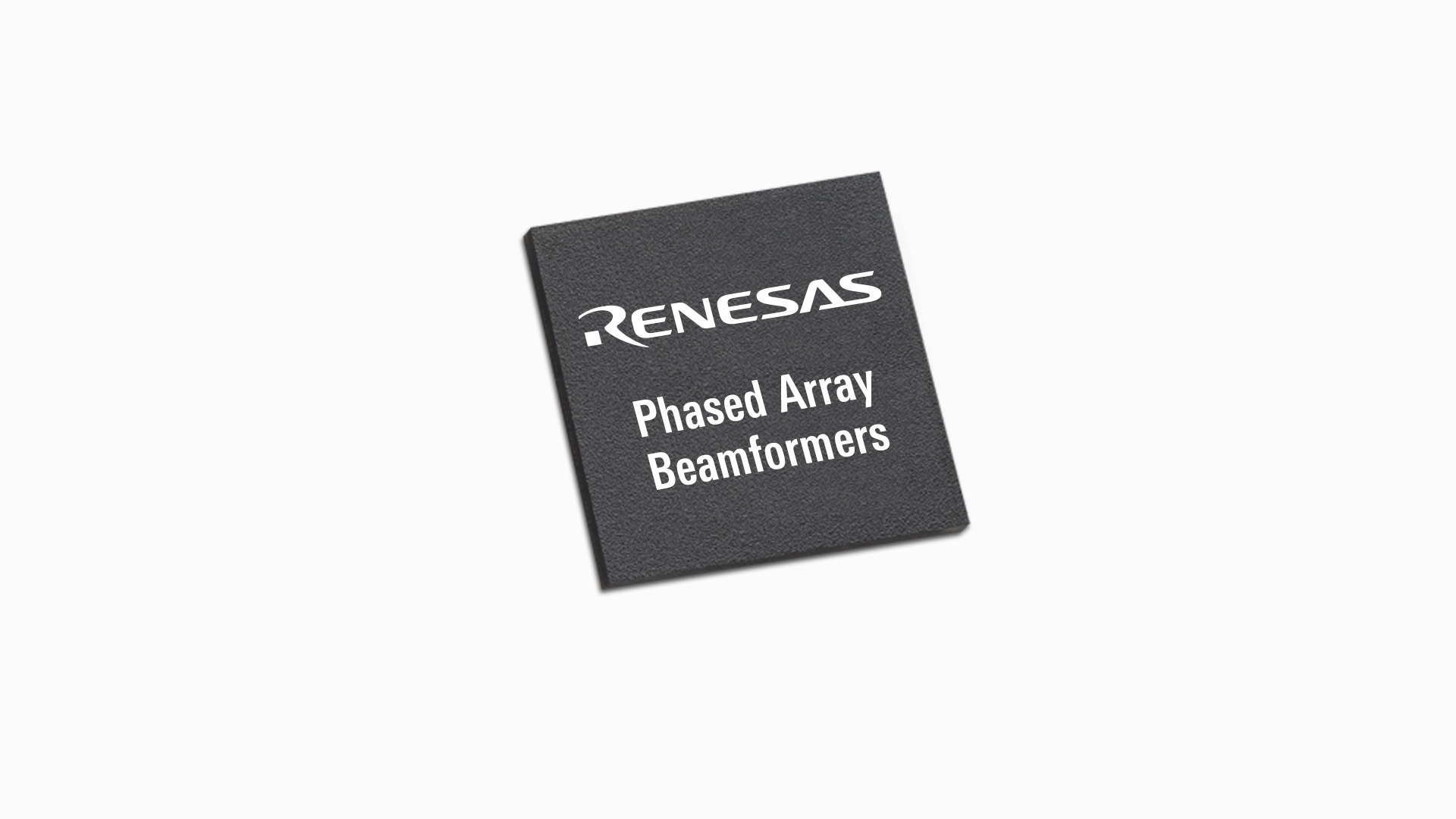

F6122S

The F6122 is a 16-ch dual-beam receive active beamforming RFIC designed for application in K/Ka-Band SATCOM planar phased array antennas. The IC has eight RF input ports, two RF outputports and 16 (8 per beam) phase/amplitude control channels. The eight input ports of the IC may be driven by eight single-polarized elements or four dual-polarized elements of an electronicallyscanned array (ESA). Each channel has 6-bits of digital phase and gain control resolution spanning 360° and 28dB of dynamic range,enabling precise beam pattern and polarization control.

Features

 17.7 – 21.2GHz operation
 Supports 4 dual-pol or 8 single-pol elements
 Two simultaneous and independent beam outputs
 360° phase control with 6-bit resolution
 28dB gain control with 0.45dB step size
 2.3V nominal single supply input
 Standard 1.8V digital logic
 IDAC for external LNA biasing
 Temperature compensation
 Temperature sensor w/ digital readout
 Advanced digital modes with fast beam steering
 On-chip beam-state memory
 3.8 x 4.6 x 0.9 mm, 63-pin FC-BGA
