Home>> Beamformer>> F6123SEVS

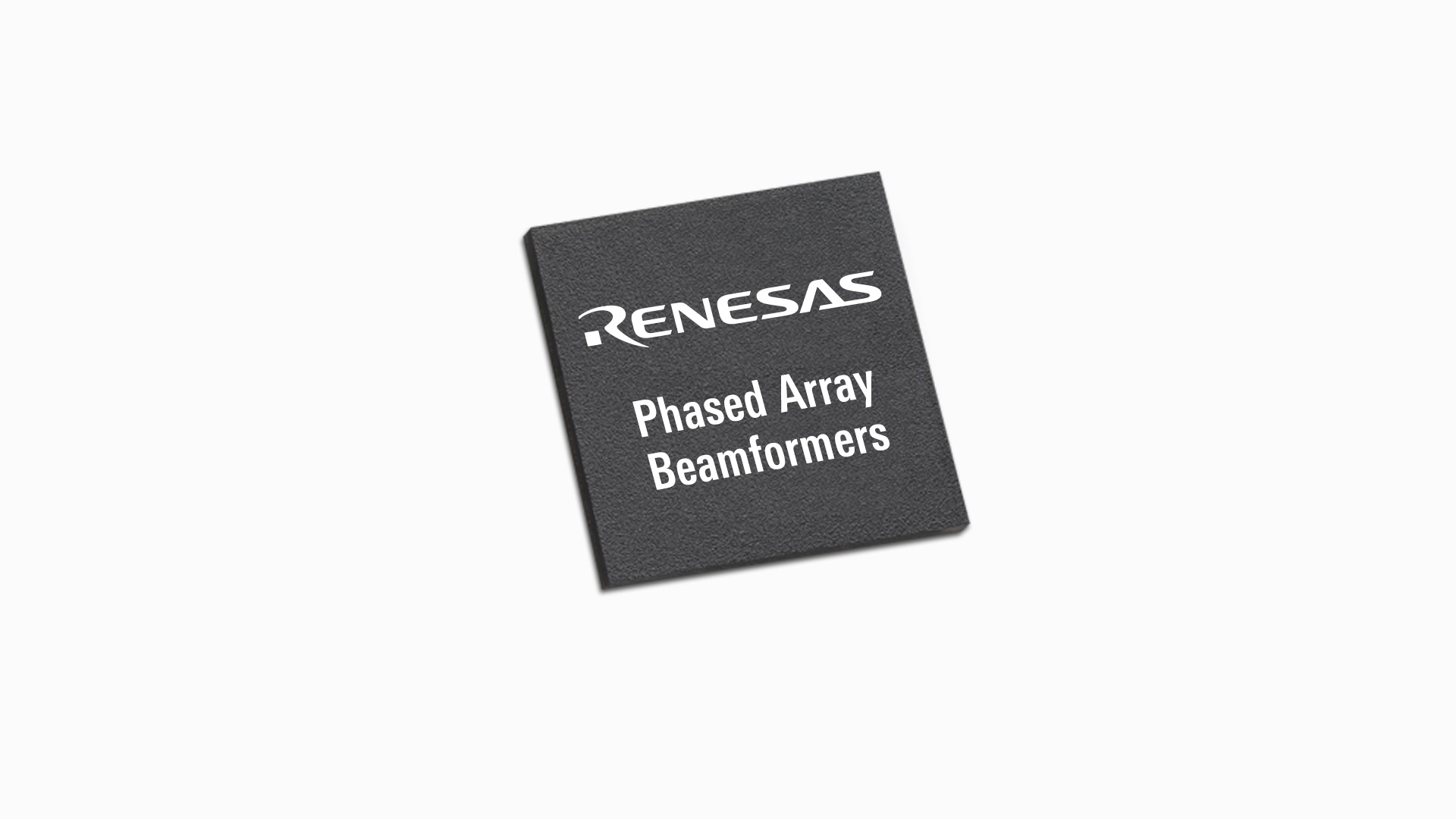

F6123SEVS

Beamformer from Axiro Semiconductor Inc.

Evaulation System for F6123S

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

The F6123 is a 16-channel dual-beam receive active beamforming RFIC designed for application in Ku/CDL-Band planar phased array antennas. The IC has eight RF input ports, two RF output ports and 16 (8 per beam) phase/amplitude control channels.

The eight input ports of the IC may be driven by eight single-polarized elements or four dual-polarized elements of an electronically scanned array (ESA). Each channel has 6-bits of digital phase and gain control resolution spanning 360° and 26dB of dynamic range, enabling precise beam pattern and polarization control.

The IC operates from a single supply of 2.1V–2.5V. When paired with the Renesas F6923 LNA, it achieves a nominal cascaded gain of 30dB, while minimizing the front end feed loss due to the flexibility of LNA physical placement near the antenna feeds.

Part Number: F6123SEVS
Manufacturer: Axiro Semiconductor Inc.
Frequency Min: 14.4 GHz
Frequency Max: 17.3 GHz

No Content Available

Technical Inquiry Request for F6123SEVS Beamformer

Fields marked with * are required.

Product Specifications For F6123SEVS Beamformer

Part Number: F6123SEVS Manufacturer: Axiro Semiconductor Inc. Product Description: Evaulation System for F6123S

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

$1487.21

Request a Pricing Quote for greater quantities

Product Notices

No Current Notices
