Home>> RF Coupler>> FPC06075

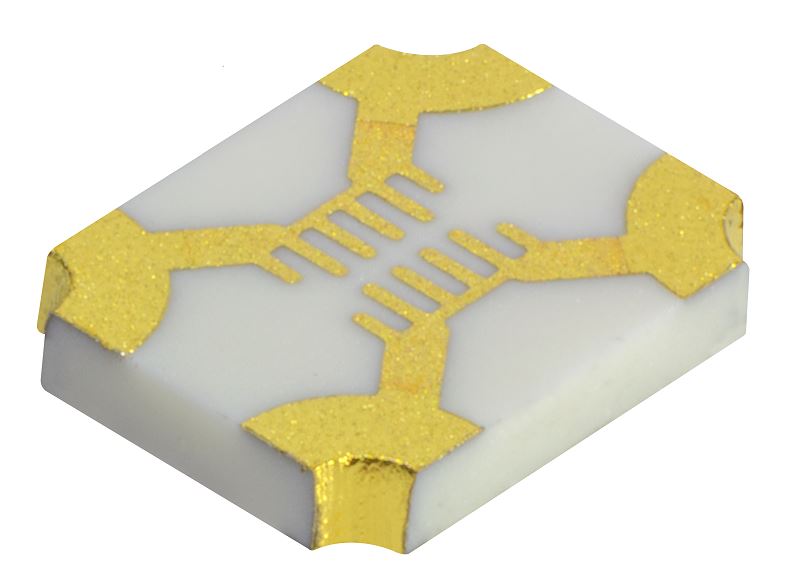

FPC06075

RF Coupler from Knowles — DLI – Dielectric Laboratories

Directional Coupler, 12 to 18GHz, 10db

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

DLI’s surface mount directional coupler series span the frequency spectrum of C, X and Ku bands. Both 10dB and 20dB coupling values are available within each frequency band both with a common footprint for maximum flexibility.

These couplers incorporate DLI’s low loss high permittivity ceramics which provide small size and temperature stability. These couplers offer a turnkey surface mount solution for high frequency power monitoring.

Custom solutions are also available.

Features

• Small Size
• High Directivity
• Frequency Stable over Temperature
• Solder Surface Mountable
• Excellent Repeatability
• Operating Temp: -55˚C to +125˚C
• Characteristic Impedance: 50Ω
• Flexible PCB Feed Line Configurations

Part Number: FPC06075
Manufacturer: Knowles — DLI – Dielectric Laboratories
Type: Directional
Min Frequency: 12000 MHz
Max Frequency: 18000 MHz
Coupling Factor: 10 dB
Package Style: SMT
Insertion Loss: 0.5 dB

No Content Available

Part Function	Part Number	Description
Evaluation Board	DEB06075 Knowles — DLI – Dielectric Laboratories	DLI , Evaluation board for FPC06075

Technical Inquiry Request for FPC06075 RF Coupler

Fields marked with * are required.

Product Specifications For FPC06075 RF Coupler

Part Number: FPC06075 Manufacturer: DLI – Dielectric Laboratories, Inc. (Knowles) Product Description: Directional Coupler, 12 to 18GHz, 10db

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

375

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1 - 9

$18.33

10 - 24

$16.50

25 - 49

$15.00

50 - 99

$13.75

Request a Pricing Quote for greater quantities

Product Notices

No Current Notices
