FPC06913

RF Coupler from Knowles — DLI – Dielectric Laboratories

Asymmetric Coupler, 6 to 18GHz, 20db

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

Untitled 1

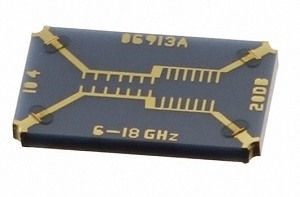

The Knowles FPC06913, 6 to 18GHz 20dB Asymmetric Coupler incorporates DLI’s high dielectric ceramic materials which provide small size and minimal performance variation over temperature. They are available in symmetrical and asymmetrical versions and feature:

Small Size
Fully Shielded Component
Solder Surface Mount Package
Moisture Sensitivity Level: MSL1
Frequency Stable over Temperature
Operating & Storage Temp: -55˚C to +125˚C
Characteristic Impedance: 50Ω

Part Number: FPC06913
Manufacturer: Knowles — DLI – Dielectric Laboratories
Type: Assymetric
Min Frequency: 6000 MHz
Max Frequency: 18000 MHz
Coupling Factor: 20 dB
Package Style: SMT
Insertion Loss: 0.3 dB

No Content Available

Part Function	Part Number	Description
Evaluation Board	DEB06913 Knowles — DLI – Dielectric Laboratories	Evaluation board for FPC06913
