Home>> RF Power Limiter>> HLM-70CSP2

HLM-70CSP2

Surface Mount from Marki Microwave

Limiter, High-Linearity, Signal, MMIC, 0 to 70000 MHz, 1 W, SMT

Status: Featured | Data Sheet:

| RoHS Compliance: Rohs Compliant

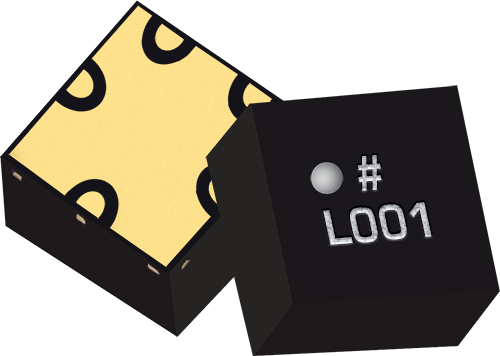

The HLM-70CSP2 is a high-linearity GaAs Schottky diode signal limiter featuring high IP3 over a broad DC - 70GHz bandwidth. It offers low insertion loss and excellent return loss over a wide operating bandwidth. Its small size makes it ideal for protecting sensitive components and for applications requiring high channel counts. It is available as a plastic surface mount chip scale package or as a connectorized evaluation board.

Part Number: HLM-70CSP2
Manufacturer: Marki Microwave
Descriptions: Broadband Limiter
Frequency Range Min: 0 MHz
Frequency Range Max: 70000 MHz
Peak Power: 1 W
Insertion Loss Typ: 0.5 dB
IIP3: 32 dBm
Package: SMT

No Content Available

Part Function	Part Number	Description
Evaluation Board	EVB-HLM-70CSP2 Marki Microwave	Evaluation Board for HLM-70CSP2

Technical Inquiry Request for HLM-70CSP2 RF Power Limiter

Fields marked with * are required.

Product Specifications For HLM-70CSP2 RF Power Limiter

Part Number: HLM-70CSP2 Manufacturer: Marki Microwave Product Description: Limiter, High-Linearity, Signal, MMIC, 0 to 70000 MHz, 1 W, SMT

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1 - 4

$136.76

5 - 9

$113.97

Request a Pricing Quote for greater quantities

Product Notices

No Current Notices
