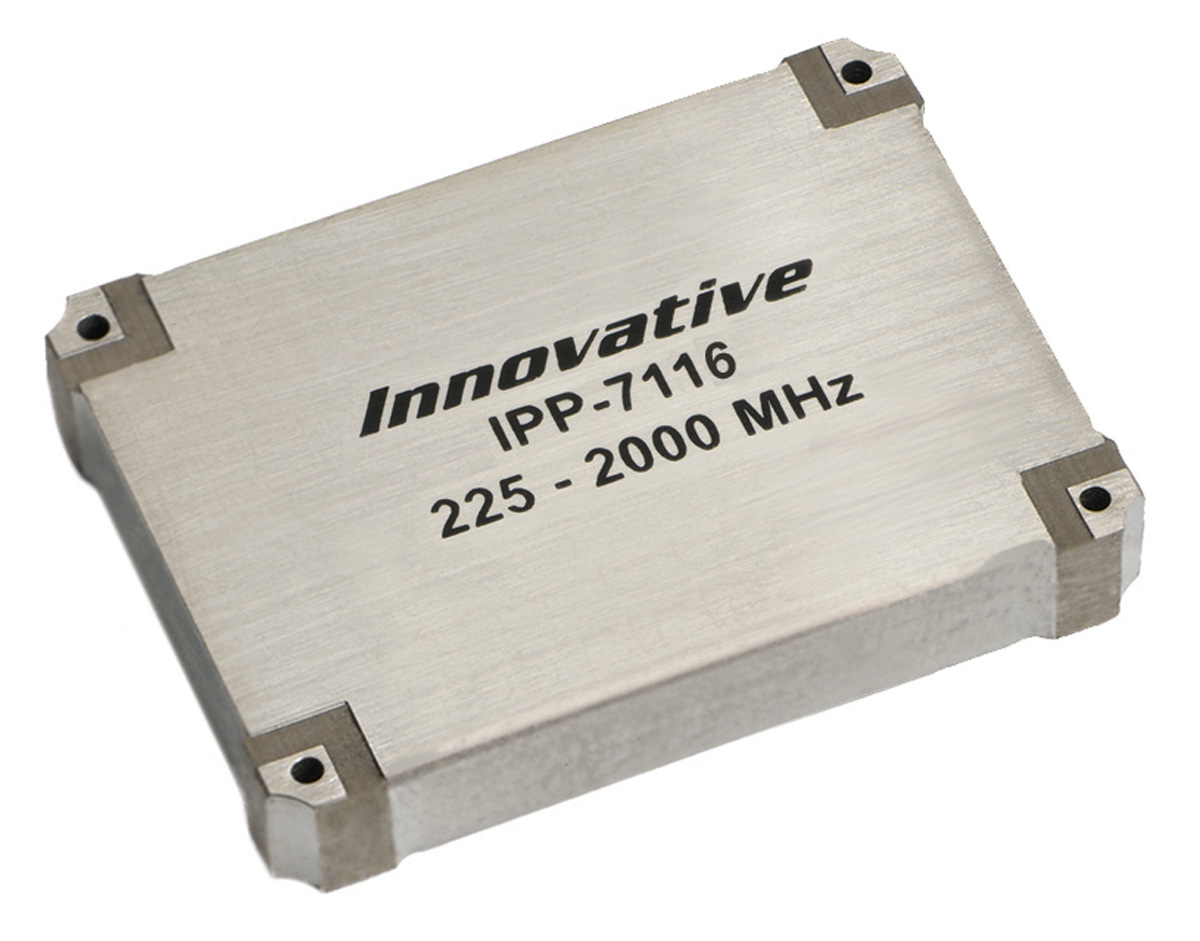

IPP-7116

RF Coupler from Innovative Power Products

Coupler, Hybrid, 225-2000MHz, 3 dB, 0.8 dB IL, 200W, SMT

Status: Standard | Data Sheet:

| RoHS Compliance:

The IPP-7116 is a Surface Mount, 90-degree Hybrid Coupler that operates from 225 to 2000 MHz with a 200 Watt average power rating. It has an amplitude balance of less than 1 dB, insertion loss less than 0.8 dB, greater than 17 dB of isolation, a phase balance of +/- 5 degrees, and VSWR less than 1.30:1. Offered in a 1.13 x 1.47 inch surface mount package, the IPP-7116 is now available and in stock at RFMW.

Part Number: IPP-7116
Manufacturer: Innovative Power Products
Type: Hybrid
Min Frequency: 225 MHz
Max Frequency: 2000 MHz
Coupling Factor: 3 dB
CW Power: 200 W
Package Style: SMT
Insertion Loss: 0.8 dB
Amplitude Balance Typ: 1 ±dB
Phase Balance Typ: 5 ± °C

No Content Available

Technical Inquiry Request for IPP-7116 RF Coupler

Fields marked with * are required.

Product Specifications For IPP-7116 RF Coupler

Part Number: IPP-7116 Manufacturer: Innovative Power Products Product Description: Coupler, Hybrid, 225-2000MHz, 3 dB, 0.8 dB IL, 200W, SMT

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1 - 9

$256.95

Request a Pricing Quote for greater quantities
