Home>> RF Mixer>> M1R-0726NZ

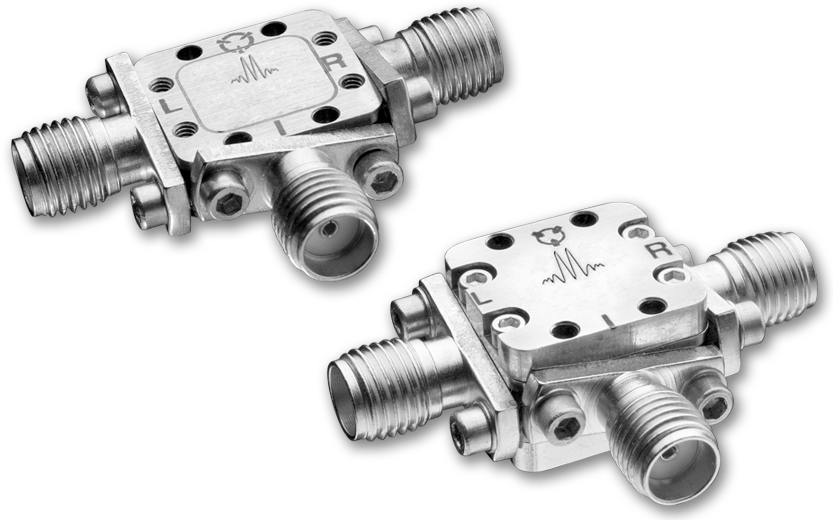

M1R-0726NZ

Legacy from Marki Microwave

RF Mixer, Double-Balanced, 7000 to 26500 MHz (RF/LO), +14 to +17 dBm (LO Drive), Connectorized-NZ, Discontinued

Status: Discontinued | Data Sheet:

| RoHS Compliance:

Part Number: M1R-0726NZ
Manufacturer: Marki Microwave
Type: Double Balanced, Legacy Mixers
RF Frequency Range Min: 7000 MHz
RF Frequency Range Max: 26500 MHz
Operating LO Frequency Range Min: 7000 MHz
Operating LO Frequency Range Max: 26500 MHz
LO Drive Min: 14 dBm
LO Drive Max: 17 dBm
IF Frequency Min: 0 MHz
IF Frequency Max: 8000 MHz
IIP3: 18 dBm
Isolation LO-RF: 38 dB
Isolation LO-IF: 25 dB
Isolation RF-IF: 25 dB
Package: Connectorized

No Content Available

Part Function	Part Number	Description
Replacement	MM1-0626HS Marki Microwave	RF Mixer, Double-Balanced, 6000 to 26500 MHz (RF/LO), +13 to +20 dBm (LO Drive), Connectorized-HS

Technical Inquiry Request for M1R-0726NZ RF Mixer

Fields marked with * are required.

Product Specifications For M1R-0726NZ RF Mixer

Part Number: M1R-0726NZ Manufacturer: Marki Microwave Product Description: RF Mixer, Double-Balanced, 7000 to 26500 MHz (RF/LO), +14 to +17 dBm (LO Drive), Connectorized-NZ, Discontinued

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

Need products sooner?

Request a Delivery Quote

Pricing

Pricing Available Upon Request. Request a Pricing Quote

Product Notices

No Current Notices

Description	Units Per Format	Available

Replacement Part(s) Suggested

The part M1R-0726NZ is discontinued, below is the suggested replacement part.

Part Number	Manufacturer	Description
MM1-0626HS	Marki Microwave	RF Mixer, Double-Balanced, 6000 to 26500 MHz (RF/LO), +13 to +20 dBm (LO Drive), Connectorized-HS

Description	Units Per Format	Available

The part M1R-0726NZ is discontinued, would you like to check out the suggested replacement part?

Part Function	Part Number	Description
Replacement	MM1-0626HS Marki Microwave	RF Mixer, Double-Balanced, 6000 to 26500 MHz (RF/LO), +13 to +20 dBm (LO Drive), Connectorized-HS
