Home>> RF Mixer>> M2H-0226MP

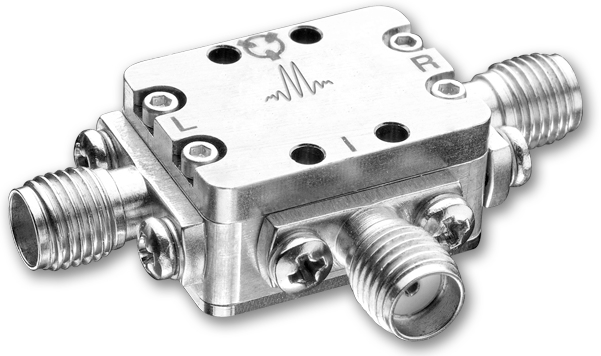

M2H-0226MP

Connectorized from Marki Microwave

RF Mixer, Triple-Balanced, 2000 to 26500 MHz (RF/LO), +13 to +16 (LO Drive), Connectorized-MP

Status: No new designs | Data Sheet:

| RoHS Compliance:

Part Number: M2H-0226MP
Manufacturer: Marki Microwave
Type: Legacy Mixers, Triple Balanced
RF Frequency Range Min: 2000 MHz
RF Frequency Range Max: 26500 MHz
Operating LO Frequency Range Min: 2000 MHz
Operating LO Frequency Range Max: 26500 MHz
LO Drive Min: 13 dBm
LO Drive Max: 16 dBm
IF Frequency Min: 1000 MHz
IF Frequency Max: 10000 MHz
IIP3: 18 dBm
Isolation LO-RF: 28 dB
Isolation LO-IF: 27 dB
Isolation RF-IF: 26 dB
Package: Connectorized

No Content Available

Part Function	Part Number	Description
Replacement	MM1-0222LS Marki Microwave	RF Mixer, Double-Balanced, 2000 to 22000 MHz (RF/LO), +7 to +15 dBm (LO Drive), Connectorized-LS
Replacement	T3-20GLS Marki Microwave	RF Mixer, Two-Tone-Terminator, 10 to 20000 MHz (RF/LO), +15 to +25 dBm (LO Drive), Connectorized-LS
