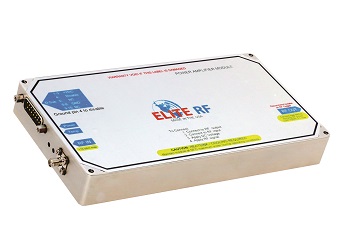

MB2.06.0G444828

Amplifier from Elite RF LLC

Amplifier, 2.0 to 6.0 GHz, 25 W Psat, 48 dB, 28 V, GaN

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

The MB2.06.0G444828 is biased class AB and has 48dB of gain, works in CW or Pulsed mode, covers from 2GHz to 6GHz with 25W output power. This amplifier can be used in narrowband and multi-octave bandwidth applications.

Typical Applications:
Electronic Warfare
Commercial and Military Radars
Jammers
SATCOM Applications
Mobile Infrastructure
Scientific, Medical and Laboratory use

Part Number: MB2.06.0G444828
Manufacturer: Elite RF LLC
Export Status:
Type: RF Connectorized Power Amplifier
Frequency Min: 2 GHz
Frequency Max: 6 GHz
P1dB: 40 dBm
Gain: 50 dB
IP3: 49 dBm
Supply Voltage \ Vd Min: 27 V
Supply Voltage \ Vd Max: 29 V
Noise Figure: 5 dB
Gain Flatness: 3 ±dB
Return Loss Input: 9.542 dB
Process: GaN
