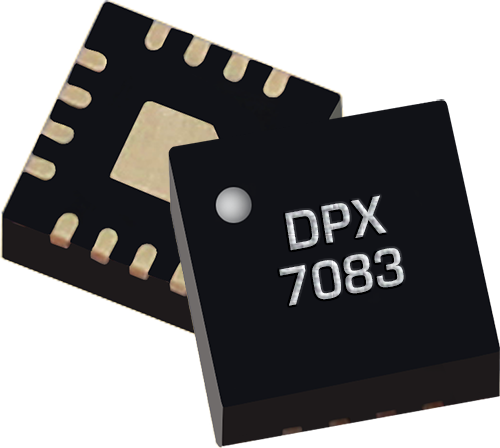

MDPX-0305PSM-1

Surface Mount from Marki Microwave

Filter, Diplexer, MMIC, 0 to 3000 MHz (Low), 5000 to 26500 MHz (High), SMT-1

Status: Featured | Data Sheet:

| RoHS Compliance: Rohs Compliant

The MDPX-0305PSM is a MMIC surface mount diplexer capable of multiplexing low frequency DC to 3 GHz and high frequency 5 to 26.5 GHz signals. Passive GaAs MMIC technology allows production of smaller filter constructions that replace larger form factor circuit board constructions. Tight fabrication tolerances allow for less unit-to-unit variation than traditional filter technologies. The MDPX-0305PSM is available as a 3x3mm QFN and connectorized evaluation board. Low unit to unit variation allows for accurate simulations using the provided S3P file taken from measured production units.

Part Number: MDPX-0305PSM-1
Manufacturer: Marki Microwave
Filtering Technology: MMIC
Centre Frequency 1: 1500 MHz
Bandwidth 1: 3000 MHz
Insertion Loss Typ 1: 1 dB
Centre Frequency 2: 15750 MHz
Bandwidth 2: 21500 MHz
Insertion Loss Typ 2: 0.5 dB
Isolation Typ: 37 dB
Length: 3 mm
Width: 3 mm
Height: 1.2 mm
Package: SMT

No Content Available

Part Function	Part Number	Description
Evaluation Board	EVB-MDPX-0305P Marki Microwave	Evaluation Board for MDPX-0305PSM-1

Technical Inquiry Request for MDPX-0305PSM-1 RF Filter - Diplexer

Fields marked with * are required.

Product Specifications For MDPX-0305PSM-1 RF Filter - Diplexer

Part Number: MDPX-0305PSM-1 Manufacturer: Marki Microwave Product Description: Filter, Diplexer, MMIC, 0 to 3000 MHz (Low), 5000 to 26500 MHz (High), SMT-1

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1 - 4

$141.42

5 - 9

$115.71

Request a Pricing Quote for greater quantities
