Home>> RF Filter - Band Pass>> MFBC-00001PSM

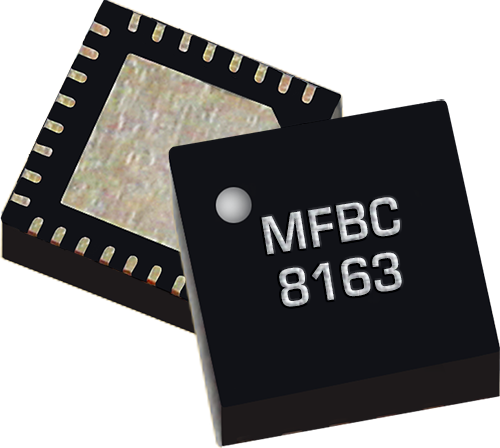

MFBC-00001PSM

Surface Mount from Marki Microwave

Filter, Band Pass, MMIC, 8700 MHz, 3000 MHz BW, 2 dB IL, SMT

Status: Featured | Data Sheet:

| RoHS Compliance: Rohs Compliant

The MFBC-0000XPSM family of passive MMIC surface mount bandpass filters are an ideal solution for small form factor, high rejection filtering. Passive GaAs MMIC technology allows production of smaller filter constructions that replace larger form factor circuit board constructions. Tight fabrication tolerances allow for less unit to unit variation than traditional filter technologies. The MFBC-0000XPSM is available as a 5x5mm plastic QFN. Low unit to unit variation allows for accurate simulations using the provided S2P file taken from measured production units.

Part Number: MFBC-00001PSM
Manufacturer: Marki Microwave
Center Frequency: 8700 MHz
Bandwidth: 3000 MHz
Insertion Loss TYP: 2 dB
Return Loss Typ: 15 dB
Package: SMT

No Content Available

Part Function	Part Number	Description
Evaluation Board	EVB-MFBC-00001P Marki Microwave	Evaluation Board for MFBC-00001PSM

Technical Inquiry Request for MFBC-00001PSM RF Filter - Band Pass

Fields marked with * are required.

Product Specifications For MFBC-00001PSM RF Filter - Band Pass

Part Number: MFBC-00001PSM Manufacturer: Marki Microwave Product Description: Filter, Band Pass, MMIC, 8700 MHz, 3000 MHz BW, 2 dB IL, SMT

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1 - 4

$141.42

5 - 9

$115.71

Request a Pricing Quote for greater quantities

Product Notices

No Current Notices
