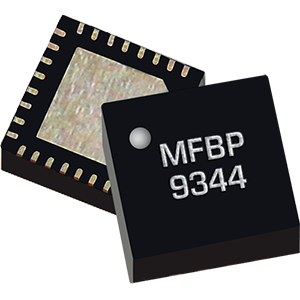

MFBP-00035PSM

Surface Mount from Marki Microwave

Filter, Band Pass, MMIC, 22470 MHz, 4830 MHz BW, 2.21 dB IL, SMT

Status: Featured | Data Sheet:

| RoHS Compliance: Rohs Compliant

The MFBP-00035PSM passive MMIC surface mount bandpass filter is an ideal solution for small form factor, high rejection filtering. Passive GaAs MMIC technology allows production of smaller filter constructions that replace larger form factor circuit board constructions. Tight fabrication tolerances allow for less unit-to-unit variation than traditional filter technologies. The MFBP-00035PSM is available as a 5x5mm plastic QFN. Low unit to unit variation allows for accurate simulations using the provided S2P file taken from measured production units.

Part Number: MFBP-00035PSM
Manufacturer: Marki Microwave
Filtering Technology: MMIC
Center Frequency: 22470 MHz
Bandwidth: 4830 MHz
Insertion Loss TYP: 2.21 dB
Return Loss Typ: 20.29 dB
Package: SMT
Length: 5 mm
Width: 5 mm
Height: 1.2 mm

No Content Available

Part Function	Part Number	Description
Evaluation Board	EVB-MFBP-00035P Marki Microwave	Evaluation Board for MFBP-00035PSM
