Home>> RF Filter - Band Pass>> MFBP-00036PSM

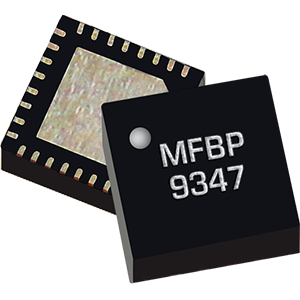

MFBP-00036PSM

Surface Mount from Marki Microwave

Filter, Band Pass, MMIC, 20560 MHz, 7820 MHz BW, 1.55 dB IL, SMT

Status: Featured | Data Sheet:

| RoHS Compliance: Rohs Compliant

The MFBP-00036PSM passive MMIC surface mount bandpass filter is an ideal solution for small form factor, high rejection filtering. Passive GaAs MMIC technology allows production of smaller filter constructions that replace larger form factor circuit board constructions. Tight fabrication tolerances allow for less unit-to-unit variation than traditional filter technologies. The MFBP-00036PSM is available as a 5x5mm plastic QFN. Low unit to unit variation allows for accurate simulations using the provided S2P file taken from measured production units.

Part Number: MFBP-00036PSM
Manufacturer: Marki Microwave
Filtering Technology: MMIC
Center Frequency: 20560 MHz
Bandwidth: 7820 MHz
Insertion Loss TYP: 1.55 dB
Return Loss Typ: 23.04 dB
Package: SMT
Length: 5 mm
Width: 5 mm
Height: 1.2 mm

No Content Available

Part Function	Part Number	Description
Evaluation Board	EVB-MFBP-00036P Marki Microwave	Evaluation Board for MFBP-00036PSM

Technical Inquiry Request for MFBP-00036PSM RF Filter - Band Pass

Fields marked with * are required.

Product Specifications For MFBP-00036PSM RF Filter - Band Pass

Part Number: MFBP-00036PSM Manufacturer: Marki Microwave Product Description: Filter, Band Pass, MMIC, 20560 MHz, 7820 MHz BW, 1.55 dB IL, SMT

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1 - 4

$141.42

5 - 9

$115.71

Request a Pricing Quote for greater quantities

Product Notices

No Current Notices
