Home>> RF Filter - Band Pass>> MFBP-00039PSM

MFBP-00039PSM

Surface Mount from Marki Microwave

Filter, Band Pass, MMIC, 35630 MHz, 7870 MHz BW, 2.46 dB IL, SMT

Status: Featured | Data Sheet:

| RoHS Compliance: Rohs Compliant

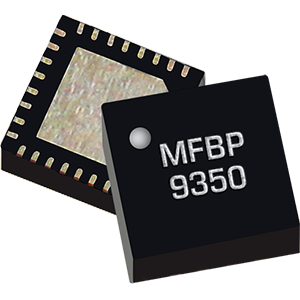

The MFBP-00039PSM passive MMIC surface mount bandpass filter is an ideal solution for small form factor, high rejection filtering. Passive GaAs MMIC technology allows production of smaller filter constructions that replace larger form factor circuit board constructions. Tight fabrication tolerances allow for less unit-to-unit variation than traditional filter technologies. The MFBP-00039PSM is available as a 5x5mm plastic QFN. Low unit to unit variation allows for accurate simulations using the provided S2P file taken from measured production units.

Part Number: MFBP-00039PSM
Manufacturer: Marki Microwave
Filtering Technology: MMIC
Center Frequency: 35630 MHz
Bandwidth: 7870 MHz
Insertion Loss TYP: 2.46 dB
Return Loss Typ: 19.78 dB
Package: SMT
Length: 5 mm
Width: 5 mm
Height: 1.2 mm

No Content Available

Part Function	Part Number	Description
Evaluation Board	EVB-MFBP-00039P Marki Microwave	Evaluation Board for MFBP-00039PSM

Technical Inquiry Request for MFBP-00039PSM RF Filter - Band Pass

Fields marked with * are required.

Product Specifications For MFBP-00039PSM RF Filter - Band Pass

Part Number: MFBP-00039PSM Manufacturer: Marki Microwave Product Description: Filter, Band Pass, MMIC, 35630 MHz, 7870 MHz BW, 2.46 dB IL, SMT

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1 - 4

$141.42

5 - 9

$115.71

Request a Pricing Quote for greater quantities

Product Notices

No Current Notices
