Home>> RF Filter - High Pass>> MFHP-00001PSM

MFHP-00001PSM

Surface Mount from Marki Microwave

Filter, High Pass, MMIC, 2000 MHz, 0.4 dB IL, SMT

Status: Featured | Data Sheet:

| RoHS Compliance: Rohs Compliant

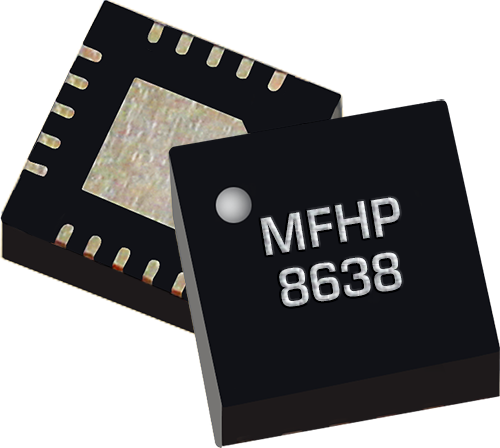

The MFHP-000XXPSM family of passive MMIC surface mount highpass filters are an ideal solution for small form factor, high rejection filtering. Passive GaAs MMIC technology allows production of smaller filter constructions that replace larger form factor circuit board constructions. Tight fabrication tolerances allow for less unit-to-unit variation than traditional filter technologies. The MFHP-000XXPSM is available as a 4x4mm plastic QFN. Low unit to unit variation allows for accurate simulations using the provided S2P file taken from measured production units.

Part Number: MFHP-00001PSM
Manufacturer: Marki Microwave
Cut Off Frequency: 2000 MHz
Insertion Loss TYP: 0.4 dB
Return Loss Typ: 19 dB
Package: SMT
Length: 4 mm
Width: 4 mm
Height: 1.2 mm

No Content Available

Part Function	Part Number	Description
Evaluation Board	EVB-MFHP-00001P Marki Microwave	Evaluation Board for MFHP-00001PSM

Technical Inquiry Request for MFHP-00001PSM RF Filter - High Pass

Fields marked with * are required.

Product Specifications For MFHP-00001PSM RF Filter - High Pass

Part Number: MFHP-00001PSM Manufacturer: Marki Microwave Product Description: Filter, High Pass, MMIC, 2000 MHz, 0.4 dB IL, SMT

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1 - 4

$141.42

5 - 9

$115.71

Request a Pricing Quote for greater quantities

Product Notices

No Current Notices
