Home>> RF Mixer>> MM1-0222HS

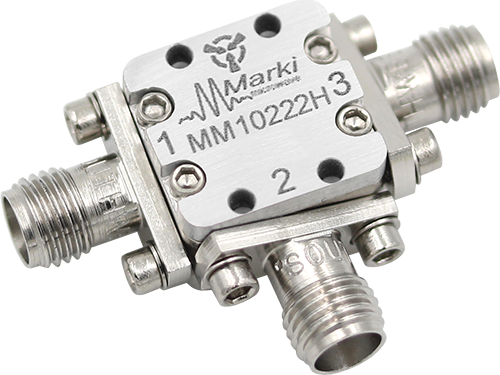

MM1-0222HS

Connectorized from Marki Microwave

RF Mixer, Double-Balanced, 2000 to 22000 MHz (RF/LO), +11 to +20 dBm (LO Drive), Connectorized-HS

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

Part Number: MM1-0222HS
Manufacturer: Marki Microwave
Type: Double Balanced
RF Frequency Range Min: 2000 MHz
RF Frequency Range Max: 22000 MHz
Operating LO Frequency Range Min: 2000 MHz
Operating LO Frequency Range Max: 22000 MHz
LO Drive Min: 11 dBm
LO Drive Max: 20 dBm
IF Frequency Min: 0 MHz
IF Frequency Max: 3500 MHz
IIP3: 20 dBm
Isolation LO-RF: 51 dB
Isolation LO-IF: 26 dB
Isolation RF-IF: 31 dB
Package: Connectorized

No Content Available

Part Function	Part Number	Description
Complementary Product	ADM1-8007APC Marki Microwave	Amplifier, LO Driver, 2 to 40 GHz, 22 dB, +21 dBm, Connectorized

Technical Inquiry Request for MM1-0222HS RF Mixer

Fields marked with * are required.

Product Specifications For MM1-0222HS RF Mixer

Part Number: MM1-0222HS Manufacturer: Marki Microwave Product Description: RF Mixer, Double-Balanced, 2000 to 22000 MHz (RF/LO), +11 to +20 dBm (LO Drive), Connectorized-HS

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1 - 4

$855.84

5 - 9

$805.49

Request a Pricing Quote for greater quantities

Product Notices

No Current Notices
