Home>> RF Mixer>> MM1-0330HS

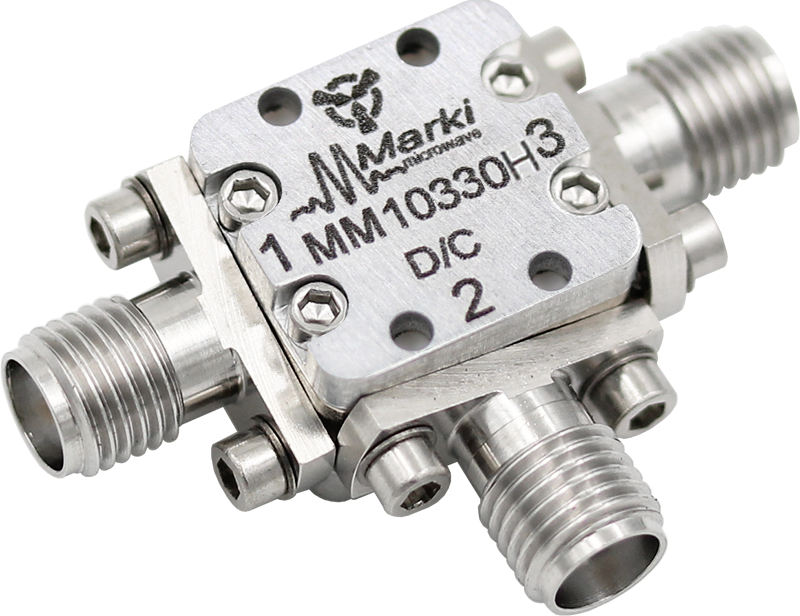

MM1-0330HS

Connectorized from Marki Microwave

RF Mixer, Double-Balanced, 3000 to 30000 MHz (RF/LO), +15 to +23 dBm (LO Drive), Connectorized-HS

Status: Featured | Data Sheet:

| RoHS Compliance: Rohs Compliant

MM1-0330H is a GaAs MMIC double balanced mixer that features excellent conversion loss, superior isolations, and spurious performance across a broad 3-30 GHz bandwidth. The MM1-0330H works well as both an up and down converter through the K band and beyond with an IF response from DC to 5GHz. The MM1-0330H features high linearity. For higher linearity applications, the sister MM1-0330T is recommended. It is available as both wire bondable die and as a connectorized module.

Part Number: MM1-0330HS
Manufacturer: Marki Microwave
Type: Double Balanced
RF Frequency Range Min: 3000 MHz
RF Frequency Range Max: 30000 MHz
Operating LO Frequency Range Min: 3000 MHz
Operating LO Frequency Range Max: 30000 MHz
LO Drive Min: 15 dBm
LO Drive Max: 23 dBm
IF Frequency Min: 0 MHz
IF Frequency Max: 5000 MHz
Isolation LO-RF: 50 dB
Isolation LO-IF: 40 dB
Isolation RF-IF: 40 dB
Package: Connectorized

No Content Available

Part Function	Part Number	Description
Complementary Product	ADM1-8007APC Marki Microwave	Amplifier, LO Driver, 2 to 40 GHz, 22 dB, +21 dBm, Connectorized

Technical Inquiry Request for MM1-0330HS RF Mixer

Fields marked with * are required.

Product Specifications For MM1-0330HS RF Mixer

Part Number: MM1-0330HS Manufacturer: Marki Microwave Product Description: RF Mixer, Double-Balanced, 3000 to 30000 MHz (RF/LO), +15 to +23 dBm (LO Drive), Connectorized-HS

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1 - 4

$999.68

5 - 9

$940.87

Request a Pricing Quote for greater quantities

Product Notices

No Current Notices
