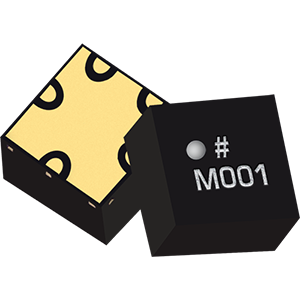

MM1-0626HCSP2

Surface Mount from Marki Microwave

RF Mixer, Double-Balanced, 6000 to 26000 MHz (RF/LO), +11 to +20 dBm (LO Drive), SMT-HCSP2

Status: Featured | Data Sheet:

| RoHS Compliance: Rohs Compliant

The MM1-0626SCSP2 is a highly linear passive GaAs double balanced MMIC mixer suitable for both up and down-conversion applications. As with all Marki Microwave mixers, it features excellent conversion loss, isolation and spurious performance across a broad bandwidth and in a small form factor. The MM1-0626SCSP2 is available in a lead-free, RoHS compliant 2.5x2.5 mm chip scale surface mount package (CSP2) and is compatible with standard leaded and lead-free PCB reflow soldering processes. The MM1-0626SCSP2 is a smaller alternative to the standard MM1-0626SSM.

Part Number: MM1-0626HCSP2
Manufacturer: Marki Microwave
Type: Double Balanced
RF Frequency Range Min: 6000 MHz
RF Frequency Range Max: 26000 MHz
Operating LO Frequency Range Min: 6000 MHz
Operating LO Frequency Range Max: 26000 MHz
LO Drive Min: 11 dBm
LO Drive Max: 20 dBm
IF Frequency Min: 0 MHz
IF Frequency Max: 9000 MHz
IIP3: 19.5 dBm
Isolation LO-RF: 45 dB
Isolation LO-IF: 37 dB
Isolation RF-IF: 42 dB
Package: SMT

No Content Available

Part Function	Part Number	Description
Evaluation Board	EVB-MM1-0626H Marki Microwave	Evaluation Board for MM1-0626HCSP2

Technical Inquiry Request for MM1-0626HCSP2 RF Mixer

Fields marked with * are required.

Product Specifications For MM1-0626HCSP2 RF Mixer

Part Number: MM1-0626HCSP2 Manufacturer: Marki Microwave Product Description: RF Mixer, Double-Balanced, 6000 to 26000 MHz (RF/LO), +11 to +20 dBm (LO Drive), SMT-HCSP2

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1 - 4

$128.38

5 - 9

$105.04

Request a Pricing Quote for greater quantities

Product Notices

No Current Notices
