Home>> RF Mixer>> MM2A-0530HPSM

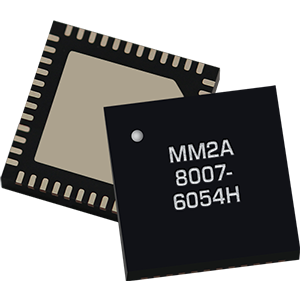

MM2A-0530HPSM

Surface Mount from Marki Microwave

RF Mixer, Triple-Balanced, Integrated LO Drive, 5000 to 30000 MHz (RF/LO), -3 to +3 dBm (LO Input Power), SMT-H

Status: Featured | Data Sheet:

| RoHS Compliance: Rohs Compliant

The MM2A-0530HPSM is a versatile, robust, and broadband triple balanced mixer with an integrated broadband LO driver amplifier. The MM2A-0530HPSM is ideal for applications with wide and overlapping bandwidths and operation through the K band. The integrated LO driver amplifier allows for operation with LO powers as low as +0dBm while retaining exceptional conversion loss and linearity.

Part Number: MM2A-0530HPSM
Manufacturer: Marki Microwave
Type: Integrated Drive Mixers, Triple Balanced
RF Frequency Range Min: 5000 MHz
RF Frequency Range Max: 30000 MHz
Operating LO Frequency Range Min: 5000 MHz
Operating LO Frequency Range Max: 30000 MHz
LO Drive Min: -3 dBm
LO Drive Max: 3 dBm
IF Frequency Min: 2000 MHz
IF Frequency Max: 22000 MHz
IIP3: 25 dBm
Isolation RF-IF: 39 dB
Package: SMT

No Content Available

Part Function	Part Number	Description
Evaluation Board	EVB-MM2A-0530HP Marki Microwave	Evaluation Board for MM2A-0530HPSM

Technical Inquiry Request for MM2A-0530HPSM RF Mixer

Fields marked with * are required.

Product Specifications For MM2A-0530HPSM RF Mixer

Part Number: MM2A-0530HPSM Manufacturer: Marki Microwave Product Description: RF Mixer, Triple-Balanced, Integrated LO Drive, 5000 to 30000 MHz (RF/LO), -3 to +3 dBm (LO Input Power), SMT-H

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

On Order

by 5/20/2026

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1 - 4

$447.93

5 - 9

$366.49

Request a Pricing Quote for greater quantities

Product Notices

No Current Notices
