Home>> RF Switch>> MM5622-01NBX-TR

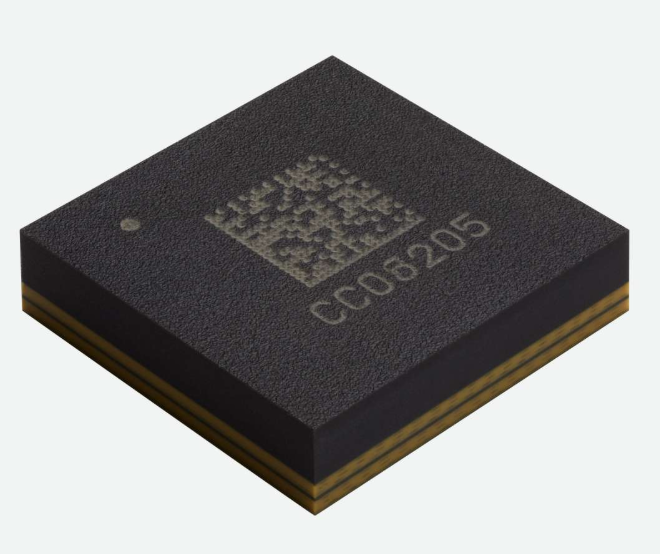

MM5622-01NBX-TR

RF Switch from Menlo Microsystems

Differential Dual DP3T, 80 Gbps High Speed Differential Loopback Switch (DC Coupled)

Status: Featured | Data Sheet:

| RoHS Compliance: Rohs Compliant

The MM5622-01NBX is a high-speed differential loopback switch (DC coupled) supporting the high-speed differential signal switching required in the latest PCIe Gen 5, Gen 6, SerDes, and other standards. The MM5622-01NBX is based on Menlo Micro’s Ideal Switch® technology and can operate at 80 Gbps with a bandwidth of 20 GHz for high-performance applications. The MM5622-01NBX has low insertion loss, fast switching speed, and can operate with greater than 3 billion switching cycles. Applications include chip testing for smartphones, graphics, and network processors, as well as microprocessor, accelerator, and high-speed memory products.

Part Number: MM5622-01NBX-TR
Manufacturer: Menlo Microsystems
Function: DP3T
Frequency Range Min: 0 MHz
Frequency Range Max: 20, 0 MHz
Insertion Loss Min: 0.7 dB
Insertion Loss Max: 2.5 dB
Isolation Min: 36 dB
Isolation Max: 61 dB
Package: LGA
Descriptions: High Speed Digital Test

No Content Available

Part Function	Part Number	Description
Evaluation Board	MM5622EVK2A Menlo Microsystems	High-performance evaluation board for MM5622 (Dual DPDT w/internal charge pump-DC coupled loopback, w/Southwest connectors-QTY-16)
Evaluation Board	MM5622EVK2B Menlo Microsystems	High-performance evaluation board for MM5622 (Dual DPDT w/internal charge pump-DC coupled loopback, w/Southwest connectors-QTY-8)

Technical Inquiry Request for MM5622-01NBX-TR RF Switch

Fields marked with * are required.

Product Specifications For MM5622-01NBX-TR RF Switch

Part Number: MM5622-01NBX-TR Manufacturer: Menlo Microsystems Product Description: Differential Dual DP3T, 80 Gbps High Speed Differential Loopback Switch (DC Coupled)

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

On Order

by 9/19/2025

470

by 10/3/2025

1000

by 10/31/2025

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1 - 249

$235.00

250 - 499

$226.00

Request a Pricing Quote for greater quantities

Product Notices

No Current Notices
