Home>> Amplifier>> MMA-172135-M5

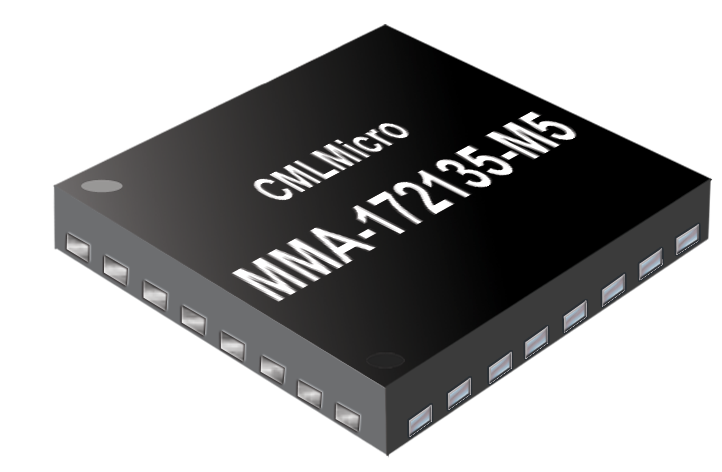

MMA-172135-M5

SuRF RF from CML Micro

Amplifier, MMIC, 17 to 21 GHz, 35 dBm, 27 dB, 6 V, 5 x 5 QFN

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

CML Micro’s MMA-172135-M5 is a broadband GaAs MMIC power amplifier delivering 3W output power and 27 dB gain across 17–21 GHz. With a P1dB of 35 dBm, IM3 of −45 dBc at 20 dBm/tone, and fully matched 50Ω I/O, it ensures excellent linearity and performance. Operating from 6V with IDS of 1500–2800 mA, this RoHS-compliant 5 × 5 mm QFN device is ideal for point-to-point radios, VSAT terminals, microwave instrumentation, and wireless communication systems.

Part Number: MMA-172135-M5
Manufacturer: CML Micro
Export Status:
Type: RF Power MMIC
Frequency Min: 17 GHz
Frequency Max: 21 GHz
P1dB: 35 dBm
Psat: 36 dBm
Gain: 27 dB
Supply Voltage \ Vd Max: 6 V
Package: QFN 5x5mm
Gain Flatness: 1 ±dB
Process: GaAs

No Content Available

Part Function	Part Number	Description
Evaluation Board	MMA-172135-M5EV CML Micro	Evaluation Board for MMA-172135-M5
