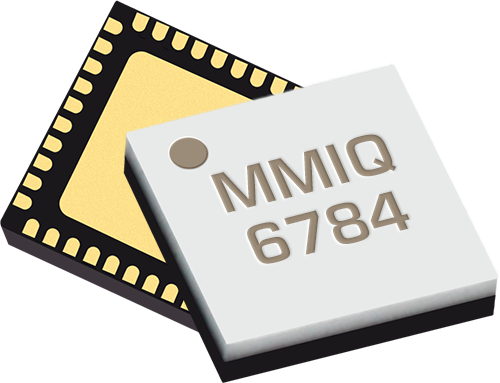

MMIQ-0218HSM-2

Surface Mount from Marki Microwave

RF Mixer, MMIC IQ, 2000 to 18000 MHz (RF/LO), +18 to +26 dBm (LO Drive), SMT-H2

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

Part Number: MMIQ-0218HSM-2
Manufacturer: Marki Microwave
Type: Double Balanced IQ
RF Frequency Range Min: 2000 MHz
RF Frequency Range Max: 18000 MHz
Operating LO Frequency Range Min: 2000 MHz
Operating LO Frequency Range Max: 18000 MHz
LO Drive Min: 18 dBm
LO Drive Max: 26 dBm
IF Frequency Min: 0 MHz
IF Frequency Max: 3000 MHz
IIP3: 24.5 dBm
Isolation LO-RF: 53 dB
Isolation LO-IF: 26.5 dB
Isolation RF-IF: 36 dB
Package: SMT

No Content Available

Part Function	Part Number	Description
Evaluation Board	EVAL-MMIQ-0218H Marki Microwave	Evaluation Board for MMIQ-0218HSM-2
Complementary Product	ADM-8007PSM Marki Microwave	Amplifier, 2 to 40 GHz , 23 dB, +24 dBm, SMT

Technical Inquiry Request for MMIQ-0218HSM-2 RF Mixer

Fields marked with * are required.

Product Specifications For MMIQ-0218HSM-2 RF Mixer

Part Number: MMIQ-0218HSM-2 Manufacturer: Marki Microwave Product Description: RF Mixer, MMIC IQ, 2000 to 18000 MHz (RF/LO), +18 to +26 dBm (LO Drive), SMT-H2

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1 - 4

$541.67

5 - 9

$443.18

Request a Pricing Quote for greater quantities

Product Notices

No Current Notices
