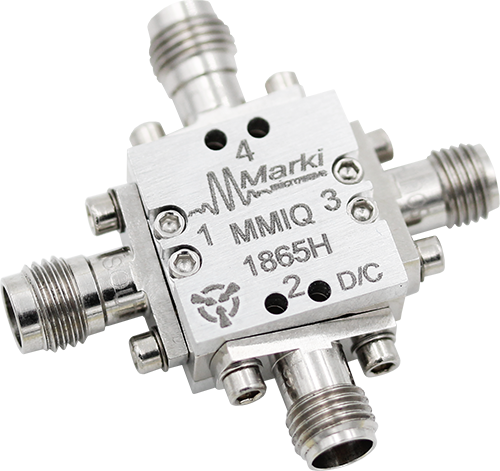

MMIQ-1865HUB

Connectorized from Marki Microwave

RF Mixer, MMIC IQ, 18000 to 65000 MHz (RF/LO), +15 to +21 dBm (LO Drive), Connectorized-HUB

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

Part Number: MMIQ-1865HUB
Manufacturer: Marki Microwave
Type: Double Balanced IQ
RF Frequency Range Min: 18000 MHz
RF Frequency Range Max: 65000 MHz
Operating LO Frequency Range Min: 18000 MHz
Operating LO Frequency Range Max: 65000 MHz
LO Drive Min: 15 dBm
LO Drive Max: 21 dBm
IF Frequency Min: 0 MHz
IF Frequency Max: 23000 MHz
IIP3: 21 dBm
Isolation LO-RF: 48 dB
Isolation LO-IF: 42 dB
Isolation RF-IF: 50 dB
Package: Connectorized

No Content Available

Part Function	Part Number	Description
Complementary Product	ADM1-8007APC Marki Microwave	Amplifier, LO Driver, 2 to 40 GHz, 22 dB, +21 dBm, Connectorized
