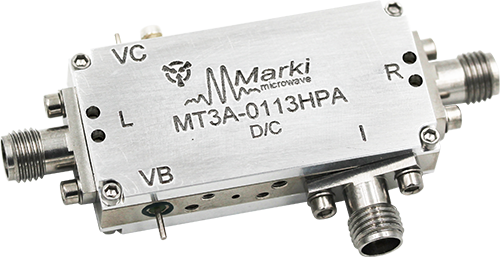

MT3A-0113HPA

Connectorized from Marki Microwave

RF Mixer, Two-Tone-Terminator, Integrated LO Amp, 1000 to 13000 MHz (RF/LO), +3 to +15 dBm (LO Drive), Connectorized-HPA

Status: Featured | Data Sheet:

| RoHS Compliance: Rohs Compliant

The MT3A-0113HPA is a versatile, robust, and broadband Two-Tone-Terminator mixer integrated with a low phase noise LO driver amplifier. The MT3A-0113HPA employs the most sophisticated mixer on the market today and offers unparalleled performance when compared to all other mixer technologies. The MT3A-0113HPA delivers exceptional IMD suppression with low conversion loss and high IP3. The integrated positive bias only LO amplifier allows for high linearity with low LO drive levels down to just +5dBm.

Part Number: MT3A-0113HPA
Manufacturer: Marki Microwave
Type: Integrated Drive Mixers, T3 High Linearity, Triple Balanced
RF Frequency Range Min: 1000 MHz
RF Frequency Range Max: 13000 MHz
Operating LO Frequency Range Min: 1000 MHz
Operating LO Frequency Range Max: 13000 MHz
LO Drive Min: 3 dBm
LO Drive Max: 15 dBm
IF Frequency Min: 500 MHz
IF Frequency Max: 8500 MHz

No Content Available

Technical Inquiry Request for MT3A-0113HPA RF Mixer

Fields marked with * are required.

Product Specifications For MT3A-0113HPA RF Mixer

Part Number: MT3A-0113HPA Manufacturer: Marki Microwave Product Description: RF Mixer, Two-Tone-Terminator, Integrated LO Amp, 1000 to 13000 MHz (RF/LO), +3 to +15 dBm (LO Drive), Connectorized-HPA

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1 - 4

$1143.52

5 - 9

$1076.26

Request a Pricing Quote for greater quantities
