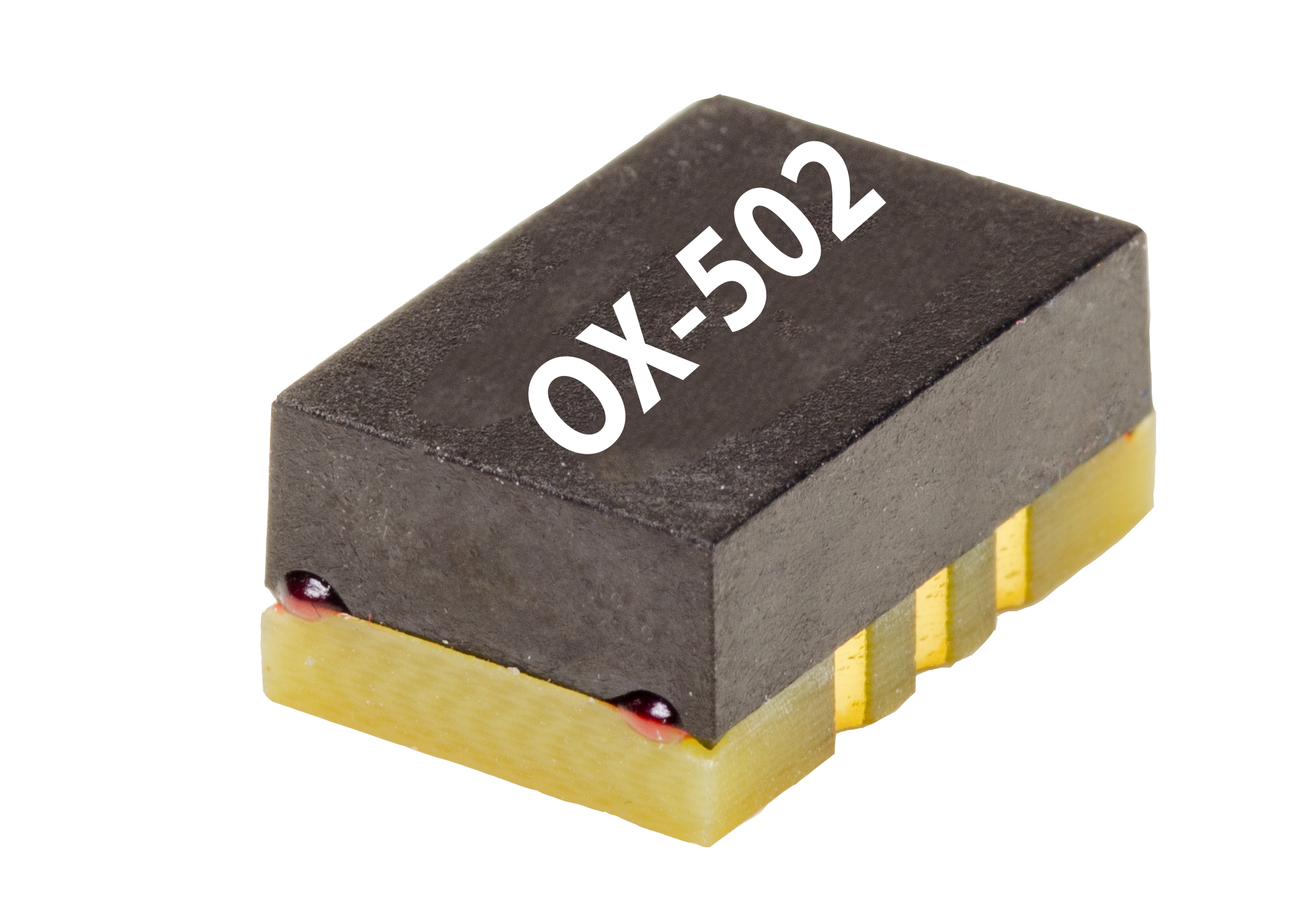

OX-5021-EAE-2080-20M000

OCXO - Oven Controlled Crystal from Microchip

OCXO, 20MHz

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

The OX-502 is a small form factor OCXO offering excellent stability with temperature under all operating conditions, including variable airflow conditions seen in network equipment. With fast warm up, this integrated design provides high reliability and low power operation. Operation to 95 degrees Celsius is available making the device suitable for 4G and 5G implementation. Frequencies are available between 10MHz and 40 MHz.

Part Number: OX-5021-EAE-2080-20M000
Manufacturer: Microchip
Package: SMT
Frequency: 20 MHz
Supply Voltage: 3.3 V
Power Consumption: 0.5 W
Output: HCMOS
Stability: 20 ±ppb
Operating Temperature: -40 to 85 °C
Package Size: 14.3 x 9.4 x 6.2 mm
