Home>> RF Cable Assembly>> P1CA-SAMSAM-RD316-6

P1CA-SAMSAM-RD316-6

Flexible Cables from P1dB

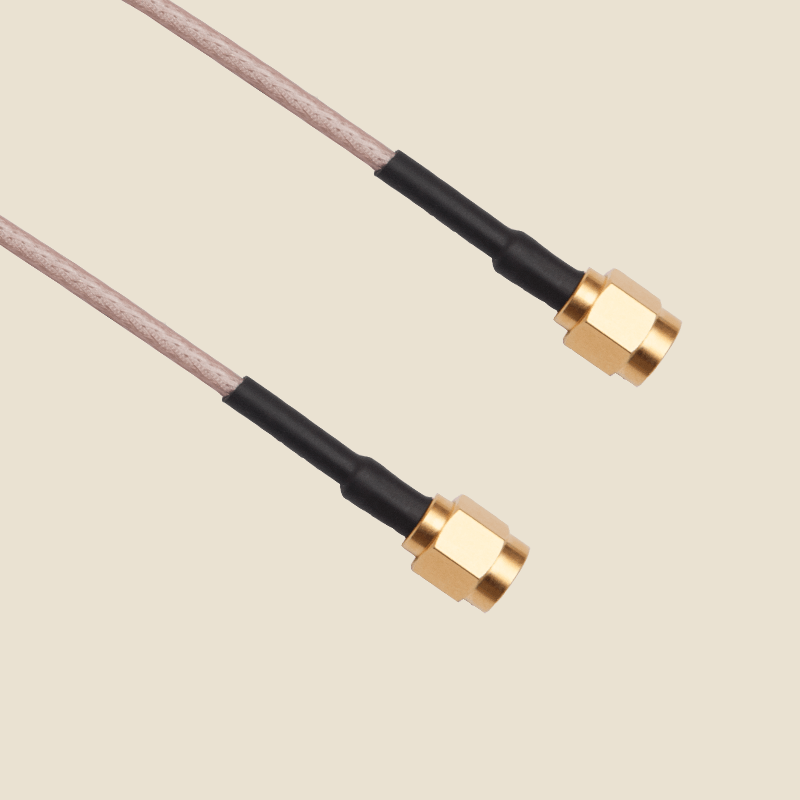

Cable Assembly, SMA Male to SMA Male, RD316 Double Shielded Coax, 6 inches

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

Part Number: P1CA-SAMSAM-RD316-6
Manufacturer: P1dB
Connector 1: SMA Male
Connector 2: SMA Male
Cable Type: RD-316 Double Shield
Length: 6 in
Max Frequency: 6 GHz
Impedance: 50 Ohms
Outer Diameter: 0.11 in

Tariff Notice

Product may be included on Section 301 Tariff List and subject to applicable tariff charges.
