Home>> 2-Stage Buck Regulator>> PE24110

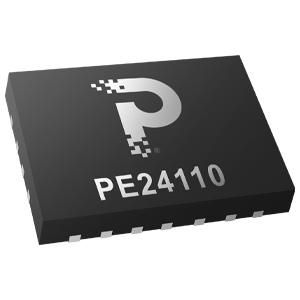

PE24110

Model Number: PE24111A-X

2-Stage Buck Regulator from pSemi

3.3 VIN, 12A Two-stage Buck Regulator

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

The PE24110 is a compact, low-profile, and ultra-high efficiency step-down DC-DC converter solution capable of delivering 12A
output current from an input voltage range from 3.0–3.6V. The output voltage is selected with external feedback resistors and can
be adjusted between 0.35V and 0.7V.
Based on pSemi’s advanced two-stage architecture, the device consists of a two-phase interleaved charge pump followed by an
interleaved buck regulator stage. This power system greatly reduces the dependency on inductance for high efficiency solutions in
small-footprint and height-constrained applications.

Part Number: PE24110
Manufacturer: pSemi
V(in) Min (VDC): 3
V(in) Max (VDC): 3.6
V(out) Min (VDC): 0.35
V(out) Max (VDC): 0.7
I(out) Max (A): 12
Efficiency (%): 89
Package: QFN
Product Family: FlexiBK

No Content Available

Technical Inquiry Request for PE24110 2-Stage Buck Regulator

Fields marked with * are required.

Product Specifications For PE24110 2-Stage Buck Regulator

Part Number: PE24110 Manufacturer: pSemi Product Description: 3.3 VIN, 12A Two-stage Buck Regulator

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1 - 100

$7.80

Request a Pricing Quote for greater quantities

Product Notices

No Current Notices
