Home>> RF Switch>> PE423211

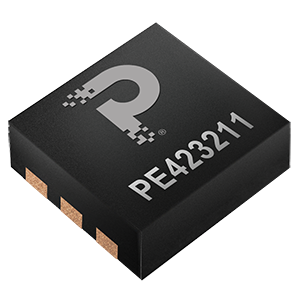

PE423211

RF Switch from pSemi

RF Switch, SPDT, 0.3 to 10.6 GHz, 0.3 to 0.6 dB IL, 30 dB Isolation, +25 dBm P1dB, 6-lead 1.6x1.6 DFN

Status: Featured | Data Sheet:

| RoHS Compliance: Rohs Compliant

The PE423211 is a HaRP™ technology-enhanced reflective 50Ω SPDT RF switch designed for use in highperformance ISM, WLAN 802.11 a/b/g/n/ac/ax, Bluetooth and UWB applications supporting bandwidths up to 10.6 GHz.

This switch features low power consumption, low insertion loss, high port-to-port isolation, fast switching speed, and high-power handling, all in a compact 6-lead 1.6 × 1.6 mm DFN package.

The PE423211 device also has robust ESD and temperature performance. The PE423211 is manufactured on pSemi’s UltraCMOS® process, a patented silicon-on-insulator (SOI) technology.

Part Number: PE423211
Manufacturer: pSemi
Type >>RF Switch: Single Pole
Function: SPDT (R)
Impedance: 50 Ohms
Frequency Range Min: 300 MHz
Frequency Range Max: 10600 MHz
Insertion Loss Min: 0.3 dB
Insertion Loss Max: 0.6 dB
Isolation Min: 15 dB
Isolation Max: 30 dB
Package: DFN
Descriptions: Broadband

No Content Available

Part Function	Part Number	Description
Evaluation Board	EK423211-01 pSemi	Evaluation Board for PE423211

Technical Inquiry Request for PE423211 RF Switch

Fields marked with * are required.

Product Specifications For PE423211 RF Switch

Part Number: PE423211 Manufacturer: pSemi Product Description: RF Switch, SPDT, 0.3 to 10.6 GHz, 0.3 to 0.6 dB IL, 30 dB Isolation, +25 dBm P1dB, 6-lead 1.6x1.6 DFN

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

3000

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1 - 100

$0.89

101 - 999

$0.71

Request a Pricing Quote for greater quantities

Product Notices

No Current Notices
