PE42422

UltraCMOS® SPDT RF Switch

RF Switch, SPDT, .005- 6 GHz, .25 dB IL, 44 dB Isolation, QFN

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

Key Features

• Symmetric SPDT reflective switch • Low insertion loss • Wide supply range of 2.3–5.5 V • Excellent linearity • High ESD tolerance • Logic Select (LS) pin provides maximum flexibility of control logic • Packaging: 12-lead 2 × 2 mm QFN

Description

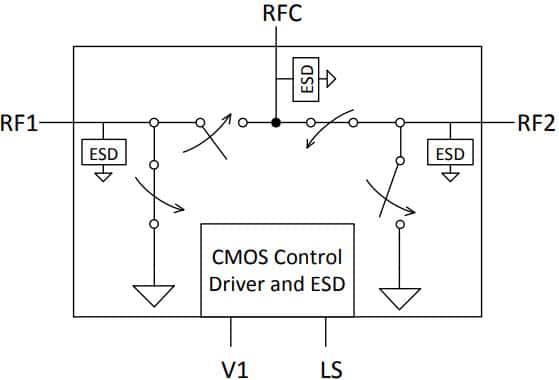

The PE42422 is a HaRP™-enhanced SPDT RF switch designed to cover a broad range of applications from 5 MHz to 6 GHz. This reflective switch integrates on-board CMOS control logic with a low voltage CMOS-compatible control interface and requires no external components.

Part Number: PE42422
Manufacturer: pSemi
Type >>RF Switch: Single Pole
Function: SPDT (R)
Impedance: 50 or 75 Ohms
Frequency Range Min: 5 MHz
Frequency Range Max: 6000 MHz
Insertion Loss Min: 0.25 dB
Insertion Loss Max: 0.9 dB
Isolation Min: 17 dB
Isolation Max: 44 dB
Power Rating: 34 dBm
IIP3: 70 dBm
Package: 12L QFN
Description: Low Insertion Loss

	Datasheet
	Material Declaration
	RoHS Compliance Certificate
	REACH Compliance Certificate
	S-Parameters
	Schematic/B.O.M.
	Gerber Files
	IPC-1752-2 Class 6 Form
	Application Note: Soldering Guidelines for Mounting Bottom-t
	Application Note: Thermal Characterization
	Application Note: Using a 50Ω Switch Within a 75Ω System
	Application Note: Using Blocking Capacitors with UltraCMOS®
	Application Note: Using the PE42422 and PE423422 in Wi-Fi 6E

Part Function	Part Number	Description
Evaluation Board	EK42422-01 pSemi	Evaluation Kit for PE42422
