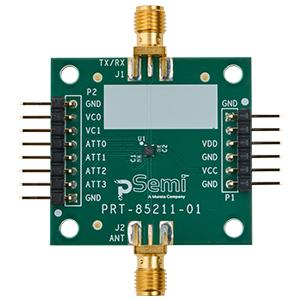

PE562212

Front-End Module from pSemi

Front End Module, 2.4GHz SOI IoT

Status: Featured | Data Sheet:

| RoHS Compliance: Rohs Compliant

The PE562212 is a high-performance, fully integrated FEM designed for Thread and Zigbee applications as well
as Bluetooth (including Bluetooth Low Energy). The PE562212 is also capable of low-to-medium Wi-Fi throughput for devices that require FW upgrades or applications with the need for increased data traffic. The PE562212 is manufactured on pSemi’s UltraCMOS process, a patented advanced form of silicon-oninsulator (SOI) technology.

Part Number: PE562212
Manufacturer: pSemi
Sub Type: BLE/Zigbee/Thread
Frequency Min: 2400 MHz
Frequency Max: 2483.5 MHz
Rx Gain: 15 dB
Rx NF: 1.6 dB
Tx Gain: 23 dB
Voltage Min: 3 V
Voltage Max: 3.6 V
OP1dB: 21 dBm

No Content Available

Technical Inquiry Request for PE562212 Front-End Module

Fields marked with * are required.

Product Specifications For PE562212 Front-End Module

Part Number: PE562212 Manufacturer: pSemi Product Description: Front End Module, 2.4GHz SOI IoT

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

4996

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1 - 100

$1.17

101 - 999

$0.94

Request a Pricing Quote for greater quantities

Product Notices

No Current Notices
