PSC50D07S

RF Coupler from Nuvotronics

Coupler, Wideband, Directional, 20dB, 18.0 GHz - 50.0 GHz

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

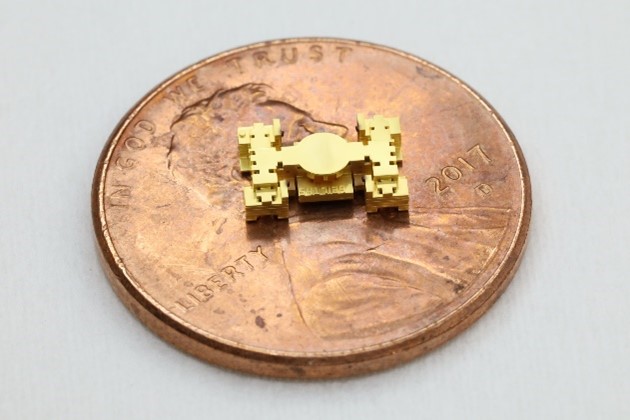

Nuvotronics air-coax technology delivers performance and precision for your millimeter-wave systems. PSC50D07S is a surface-mount directional coupler covering 18 -50 GHz. The PSC50D07S is self-shielded and uses an air dielectric. The precise PolyStrata® technology results in excellent amplitude and phase balance along with low insertion loss. The device is designed to be surface mounted using conventional SMT processes and is available in tape and reel packaging for bulk orders.

Part Number: PSC50D07S
Manufacturer: Nuvotronics
Type: Directional
Min Frequency: 18000 MHz
Max Frequency: 50000 MHz
Coupling Factor: 20 dB
CW Power: 20 W
Package Style: SMT
Insertion Loss: 0.2 dB
Isolation Typ: 35 dB
