Home>> RF Coupler>> PSC50H08S

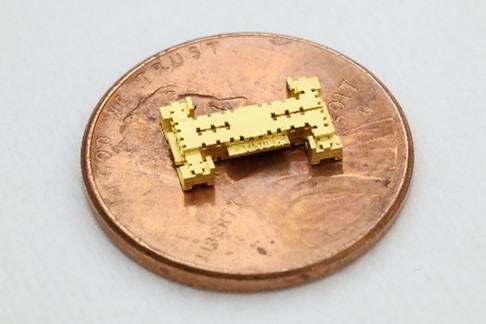

PSC50H08S

RF Coupler from Nuvotronics

Coupler, Wideband, 90 Degree Hybrid, 18.0 GHz - 50.0 GHz

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

Description:

Nuvotronics air-coax technology delivers performance and precision for your millimeter-wave systems. PSC50H08S is a surface-mount 90 degree hybrid coupler covering 18-50 GHz. The PSC50H08S is self-shielded and uses an air dielectric. The precise PolyStrata® technology results in excellent amplitude and phase balance along with low insertion loss. The device is designed to be surface mounted using conventional SMT processes and is available in tape and reel packaging for bulk orders.

Part Number: PSC50H08S
Manufacturer: Nuvotronics
Type: Hybrid
Min Frequency: 18000 MHz
Max Frequency: 50000 MHz
Coupling Factor: 3 dB
CW Power: 20 W
Package Style: SMT
Insertion Loss: 0.35 dB
Isolation Typ: 25 dB
Amplitude Balance Typ: 0.5 ±dB
Phase Balance Typ: 90 ± °C

No Content Available

Part Function	Part Number	Description
Evaluation Board	PSC50H08EVB Nuvotronics	Evaluation Board for PSC50H08S, Coupler, Wideband, 90 Degree Hybrid, 18.0 GHz - 50.0 GHz
Complementary Product	PSC18H17S Nuvotronics	Coupler, Wideband, 90 Degree Hybrid, 2.0 GHz - 18.0 GHz
