PSF28B02S

RF Filter - Band Pass from Nuvotronics

Surface mount Ka band filter in a miniature form factor

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

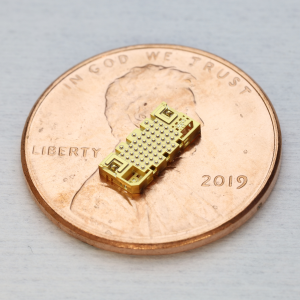

Surface mount Ka band filter in a miniature form factor

Nuvotronics PolyStrata® Technology provides high performance filtering in a small
form factor (7.57mm x 3.30mm x 1.3mm). The PSF28B02S surface-mount
interdigital filter provides low insertion loss and high rejection. Typical insertion
loss performance is < 1 dB across the 27.5 - 30 GHz band. This part is ideal for
space or ground applications. The filter is compliant with standard SMT assembly
processes. Tape and reel packaging is available for bulk orders

Part Number: PSF28B02S
Manufacturer: Nuvotronics
Filtering Technology: Interdigital
Center Frequency: 28750 MHz
Bandwidth: 2500 MHz
Insertion Loss TYP: 1 dB
Return Loss Typ: 18 dB
Low Side Rejection: 34 dB
Low Side Rejection: 25250 MHz
High Side Rejection: 41 dB
High Side Rejection: 33500 MHz
Package: SMT
Length: 7.57 mm
Width: 3.3 mm
Height: 1.3 mm

No Content Available

Technical Inquiry Request for PSF28B02S RF Filter - Band Pass

Fields marked with * are required.

Product Specifications For PSF28B02S RF Filter - Band Pass

Part Number: PSF28B02S Manufacturer: Cubic Nuvotronics, Inc. Product Description: Filter, Bandpass, 28.75 GHz, 2.5 GHz BW
