PSF29B03S

RF Filter - Band Pass from Nuvotronics

Filter, Bandpass, 29.25 GHz, 3.5 GHz BW

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

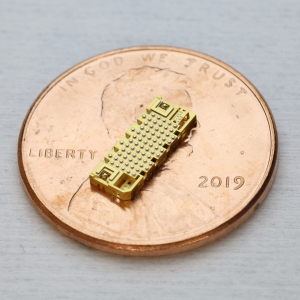

Surface mount Ka band filter in a miniature form factor

Nuvotronics PolyStrata® Technology provides high performance filtering in a small form factor (8.79 mm x 3.40 mm x 1.1 mm). The PSF29B03S surface-mount interdigital filter provides low insertion loss and high rejection. Typical insertion loss performance is 1.2 dB across the 27.5–31 GHz band. This part is ideal for space or ground applications. The filter is compliant with standard SMT assembly processes. Tape and reel packaging is available for bulk orders.

Part Number: PSF29B03S
Manufacturer: Nuvotronics
Center Frequency: 29250 MHz
Bandwidth: 3500 MHz
Insertion Loss TYP: 1.2 dB
Return Loss Typ: 18 dB
Low Side Rejection: 80 dB
High Side Rejection: 60 dB
Package: SMT
Length: 8.92 mm
Width: 3.26 mm
Height: 1.3 mm
