PSF29B22S

RF Filter - Band Pass from Nuvotronics

Surface mount wideband filter in a minature form factor

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

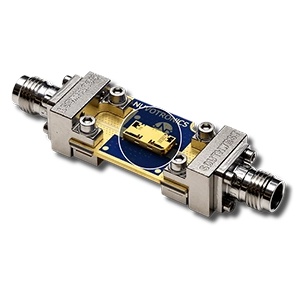

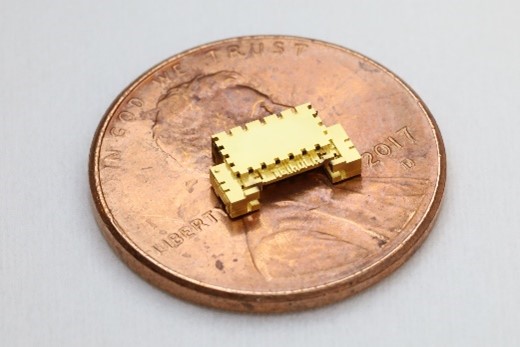

Nuvotronics PolyStrata® Technology provides high performance filtering in a small form factor (7.58mm x 4.60mm x 1.60mm). The PSF29B22S surface-mount interdigital filter provides low insertion loss and high rejection. Typical insertion loss performance is < 0.5 dB across the 18 - 40 GHz band. This part is ideal for space or ground applications. This wideband filter is compliant with standard SMT assembly processes. Tape and reel packaging is available for bulk orders

Part Number: PSF29B22S
Manufacturer: Nuvotronics
Filtering Technology: Interdigital
Center Frequency: 29000 MHz
Bandwidth: 20000 MHz
Insertion Loss TYP: 0.4 dB
Return Loss Typ: 20 dB
Low Side Rejection: 46 dB
Low Side Rejection: 16400 MHz
High Side Rejection: 50 dB
High Side Rejection: 46000 MHz
Package: SMT
Length: 7.58 mm
Width: 4.6 mm
Height: 1.6 mm
