PSF34B32S

RF Filter - Band Pass from Nuvotronics

Filter, Bandpass, 34.0 GHz, 32.0 GHz BW

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

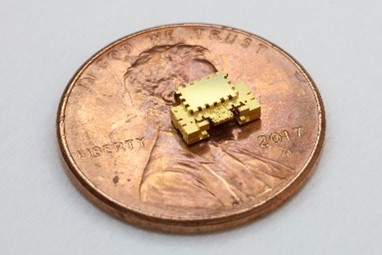

Nuvotronics PolyStrata® Technology provides high performance filtering in a small
form factor (5.8mm x 4.1mm x 1.60mm). The PSF34B32S surface-mount
interdigital filter provides low insertion loss and high rejection. Typical insertion
loss performance is < 0.4 dB across the 18 - 50 GHz band. This part is ideal for
space or ground applications. This wideband filter is compliant with standard
SMT assembly processes. Tape and reel packaging is available for bulk orders.

Part Number: PSF34B32S
Manufacturer: Nuvotronics
Filtering Technology: Interdigital
Center Frequency: 34000 MHz
Bandwidth: 32000 MHz
Insertion Loss TYP: 0.3 dB
Return Loss Typ: 20 dB
Low Side Rejection: 45 dB
Low Side Rejection: 15000 MHz
High Side Rejection: 34 dB
High Side Rejection: 58000 MHz
Package: SMT
Length: 5.8 mm
Width: 4.1 mm
Height: 1.6 mm
