PSF40B05S

RF Filter - Band Pass from Nuvotronics

RF Filter - Band Pass -- 40000MHz, 5000MHz, 1.1dB, 15dB, 40dB, 35000MHz, 32dB, 45000MHz, SMT, 8.87mm, 2.58mm, 1.3mm

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

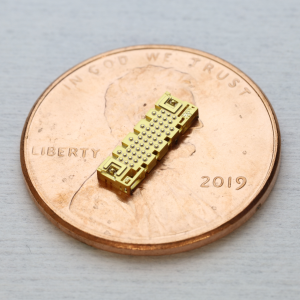

Surface mount Q band filter in a miniature form factor

Nuvotronics PolyStrata® Technology provides high performance filtering in a small
form factor (8.87mm x 2.58mm x 1.3mm). The PSF40B05S surface-mount
interdigital filter provides low insertion loss and high rejection. Typical insertion
loss performance is 1.1 dB across the 37.5 - 42.5 GHz band. This part is ideal for
space or ground applications. The filter is compliant with standard SMT assembly
processes. Tape and reel packaging is available for bulk orders.

Part Number: PSF40B05S
Manufacturer: Nuvotronics
Center Frequency: 45000 MHz
Bandwidth: 5000 MHz
Insertion Loss TYP: 1.1 dB
Return Loss Typ: 15 dB
Low Side Rejection: 40 dB
High Side Rejection: 32 dB
Package: SMT
Length: 8.87 mm
Width: 2.58 mm
Height: 1.3 mm
