Part number PSP1028108 Product Type RF Package from Manufacturer Nuvotronics

Status: Standard | Data Sheet: pdf link image   | RoHS Compliance:

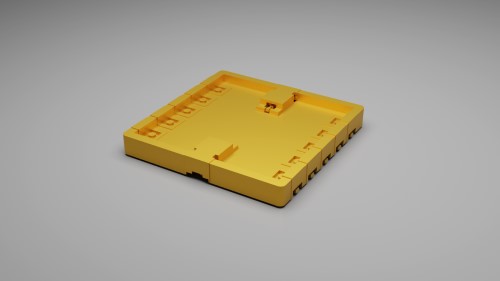

Market-leading lowest loss, surface mount form factor package for die under 1.6 x 1.6mm up to 95 GHz

Cubic Nuvotronics presents a new state of the art Low Loss MMIC package. The PolyStrata® package complements integrated MMIC performance, with less than 0.5 dB insertion loss up to 95 GHz and 20 dB return loss.

The package can be surface mounted to a PCB using standard SMT processes. This increases the ease of manufacturing while maintaining superior performance in a smaller size compared to other packaging substrates.

Part Number:
PSP1028108
Manufacturer:
Nuvotronics
Product:
Housing
Material:
Copper
Max Frequency:
95 GHz
Max Die Size:
1.6 mm2
RF Pin Count:
2 Qty
DC Pin Count:
8 Qty
Length:
5 mm
Width:
5 mm
Height:
0.7 mm

Technical Inquiry Request for PSP1028108 RF Package

Fields marked with * are required.
Product Specifications For PSP1028108 RF Package
Design Information
Contact Information


Availability
In Stock
50
