Part number PSP1028113 Product Type RF Package from Manufacturer Nuvotronics

Status: Standard | Data Sheet: pdf link image   | RoHS Compliance:

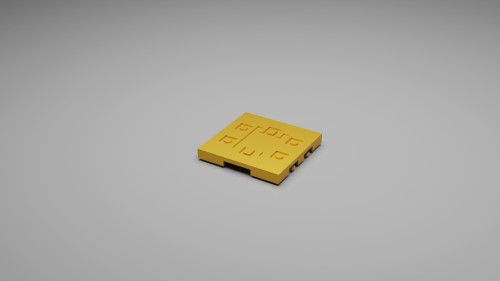

Market-leading lowest loss, surface mount form factor package for die under 1 x 1mm up to 50 GHz

Cubic Nuvotronics presents a new state of the art Low Loss MMIC package. The
PolyStrata® package complements integrated MMIC performance, with less than
0.3 dB insertion loss up to 50 GHz and 20 dB return loss. The package can be
surface mounted to a PCB using standard SMT processes. This increases the
ease of manufacturing while maintaining superior performance in a smaller size
compared to other packaging substrates

Part Number:
PSP1028113
Manufacturer:
Nuvotronics
Product:
Housing
Material:
Copper
Max Frequency:
50 GHz
Max Die Size:
1 mm2
RF Pin Count:
2 Qty
DC Pin Count:
4 Qty
Length:
3 mm
Width:
3 mm
Height:
0.4 mm
