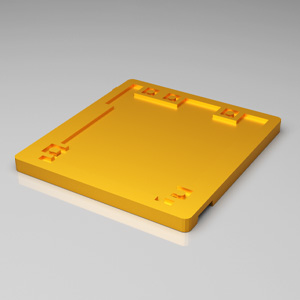

Part number PSP1029439 Product Type RF Package from Manufacturer Nuvotronics

Air-Cavity package optimized for the Qorvo’s TGA2962 2-20 GHz 10 Watt GaN Amplifier.

RF Package from Nuvotronics

RF Package, DC -20 GHz, 10W, Optimised for TGA2962

Status: Standard | Data Sheet:

| RoHS Compliance:

Unleash peak mmWave performance with our revolutionary air-cavity package! The PSP1029439 is a 5.5 x 6 mm package optimized for use with Qorvo’s TGA2962 with the unique benefit of removing heat through the top of the package. All-copper construction ensures superior thermal management, while the surface-mount form factor (SMT) simplifies assembly.

Part Number: PSP1029439
Manufacturer: Nuvotronics
Product: Housing
Material: Copper
Max Frequency: 20 GHz
Max Die Size: 5 mm2
RF Pin Count: 2 Qty
DC Pin Count: 3 Qty
Length: 5.5 mm
Width: 6 mm
Height: 1.45 mm

No Content Available

Part Function	Part Number	Description
Complementary Product	1028940-005 Nuvotronics	Lid for Package PSP1028106
Complementary Product	TGA2962 Qorvo	Amplifier, Power, GaN, 2-20 GHz, 20 dB, 40 dBm, Die, 3.24 x 3.24
