Part number PSX29Q03W Product Type RF Power Divider/Combiner from Manufacturer Nuvotronics

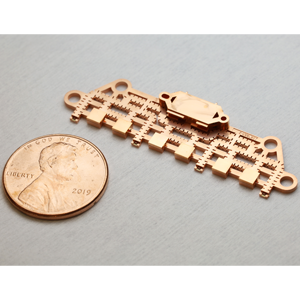

High performance 4-way power combiner for Ka band applications

RF Power Divider/Combiner from Nuvotronics

4 way Combiner -- 27.5 GHz, 31.0 GHz, 0.4dB I Loss.

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

Nuvotronics PolyStrata® Technology provides low loss combining in a small
form factor. This 4-way combiner covers 27.5 - 31 GHz with 0.4 dB insertion loss.
It has four wirebond inputs and a WR28 waveguide output. Excellent amplitude and
phase balance will result in best system level performance. The Gysel architecture
provides graceful degradation in the event of an amplifier failure or a mismatch in
the combined amplifier stages.

Part Number: PSX29Q03W
Manufacturer: Nuvotronics
Type: 4-Way
Min Frequency: 27500 MHz
Max Frequency: 31000 MHz
Insertion Loss: 0.4 dB
Package Style: SMT
