Home>> RF Power Divider/Combiner>> PSX40D05W

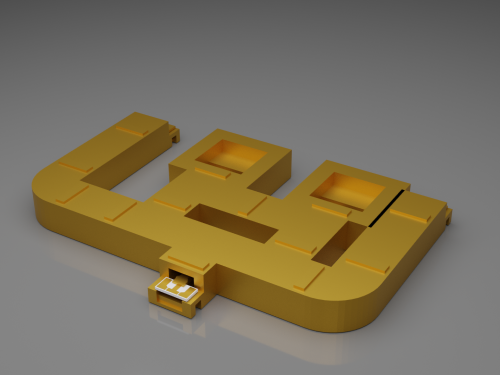

PSX40D05W

RF Power Divider/Combiner from Nuvotronics

High performance 2-way 90 degree hybrid power splitter for Q band applications.

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

Nuvotronics PolyStrata® Technology provides high performance splitting in a small
form factor. This 2-way splitter covers 37.5 - 42.5 GHz with 0.3 dB typical insertion
loss. It has two wirebond inputs and a wirebond output. Excellent amplitude and
phase balance will result in best system level performance. There is a nominal 90
degree phase difference between the paths which is designed to mate with our
PSX40D05V2W combiner. The Gysel architecture provides graceful degradation
in the event of an amplifier failure or a mismatch in the combined amplifier stages.

Part Number: PSX40D05W
Manufacturer: Nuvotronics
Type: 2-Way
Min Frequency: 37500 MHz
Max Frequency: 42500 MHz
Insertion Loss: 0.3 dB
Package Style: SMT

No Content Available

Part Function	Part Number	Description
Complementary Product	PSX40D05V2W Nuvotronics	RF Power Splitter - 37.5-42.5GHz 2-Way Splitter, IL: 0.3dB, RL: 20dB

Technical Inquiry Request for PSX40D05W RF Power Divider/Combiner

Fields marked with * are required.

Product Specifications For PSX40D05W RF Power Divider/Combiner

Part Number: PSX40D05W Manufacturer: Cubic Nuvotronics, Inc. Product Description: RF Power Splitter - 37.5-42.5GHz 2-Way Splitter, IL: 0.3dB, RL: 20dB
